Titan AV 400 Inline Lifting Bracket - 1000Kg SWL

$203.20 $254.00
    DESCRIPTION

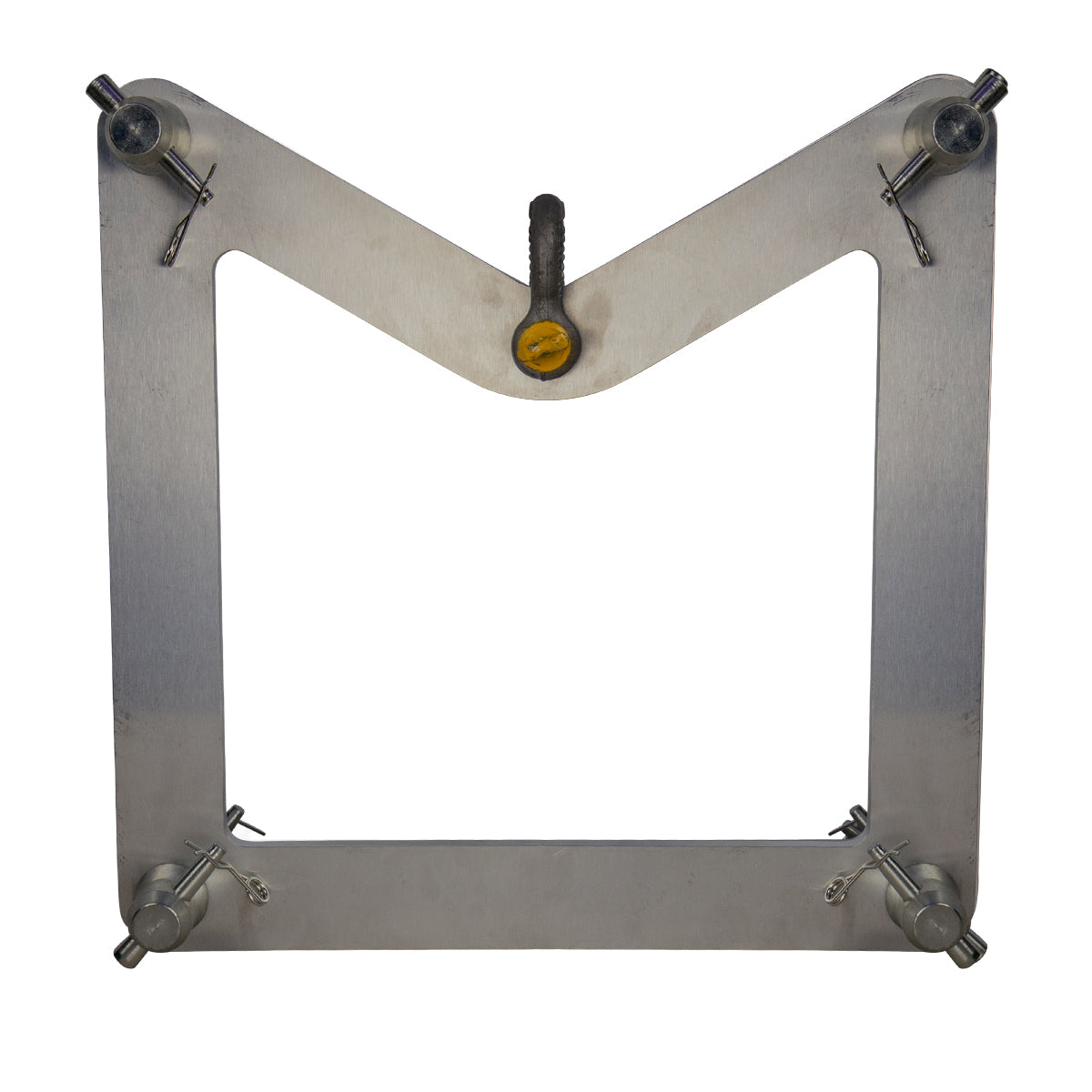

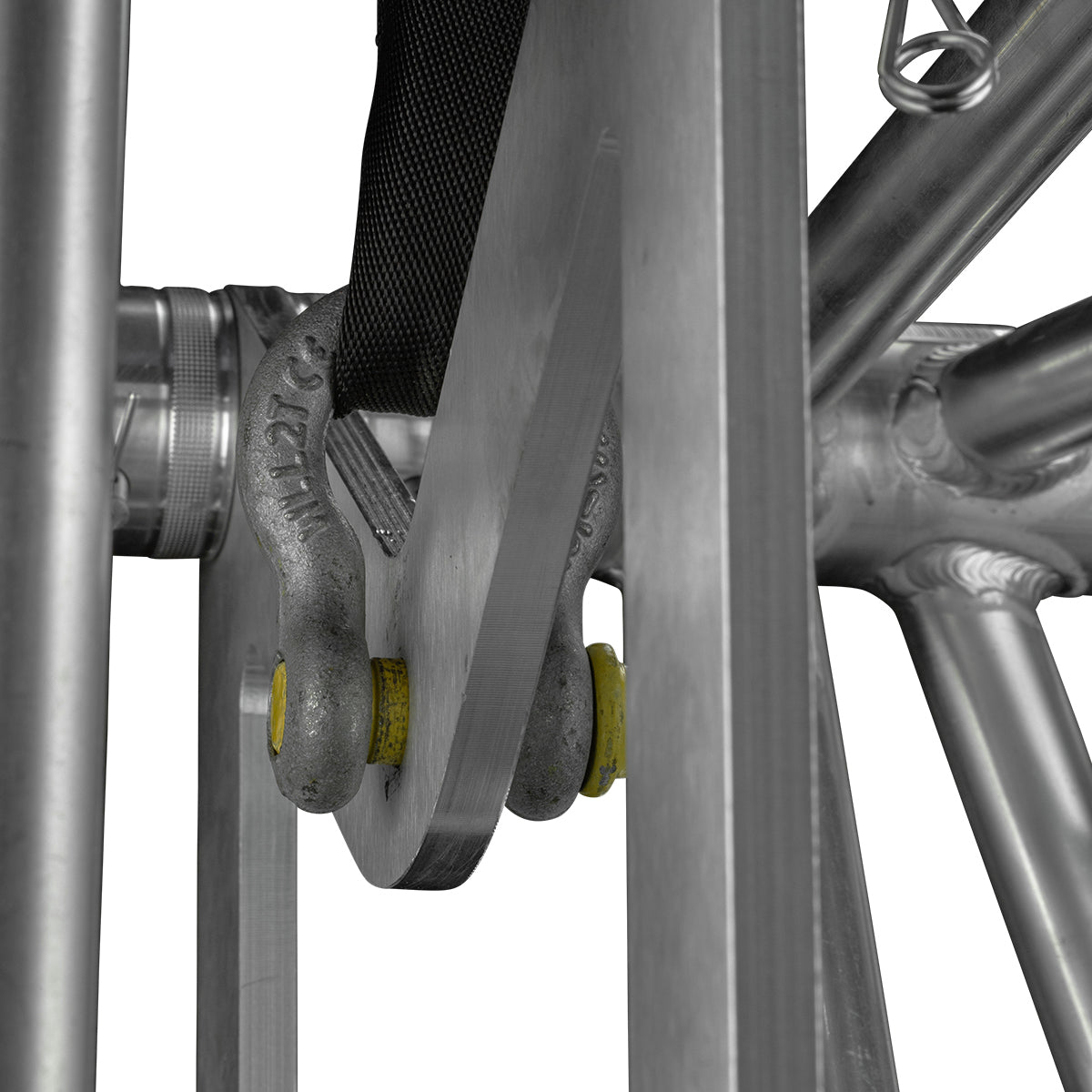

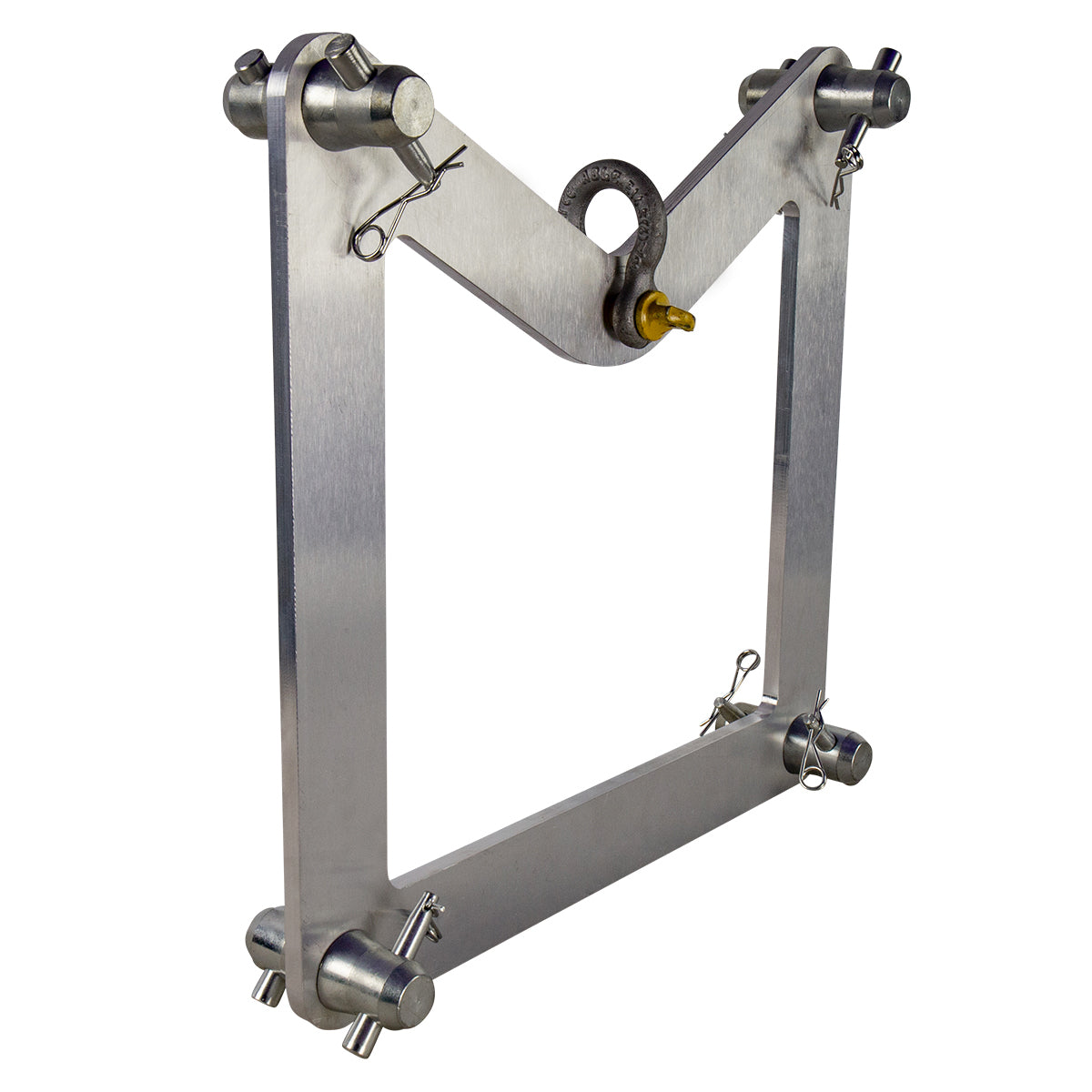

    Titan AV 400 inline lifting bracket, also know as a truss end plate suspension bracket. Supplied with bow-shackle, Half spigots, pins and clips.

    Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV inline lifting bracket comply with Australian engineering standards. Bow shackle conforms to Australia Standard AS2741, supplied with a working load limit, nominal size, quality grade, batch numbered and supplier identification.

    *Please Note; Loaded rated to a SWL of 1000kg*

    Features:

    • 2-year manufacturer's warranty
    • 1 x 400 truss inline lifting bracket
    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Australian Standard AS2741
    • Will work with Titan AV 400 box truss
    • Finish: Silver mill finish
    • Very high quality build and design
    • Max load rating 1000kg

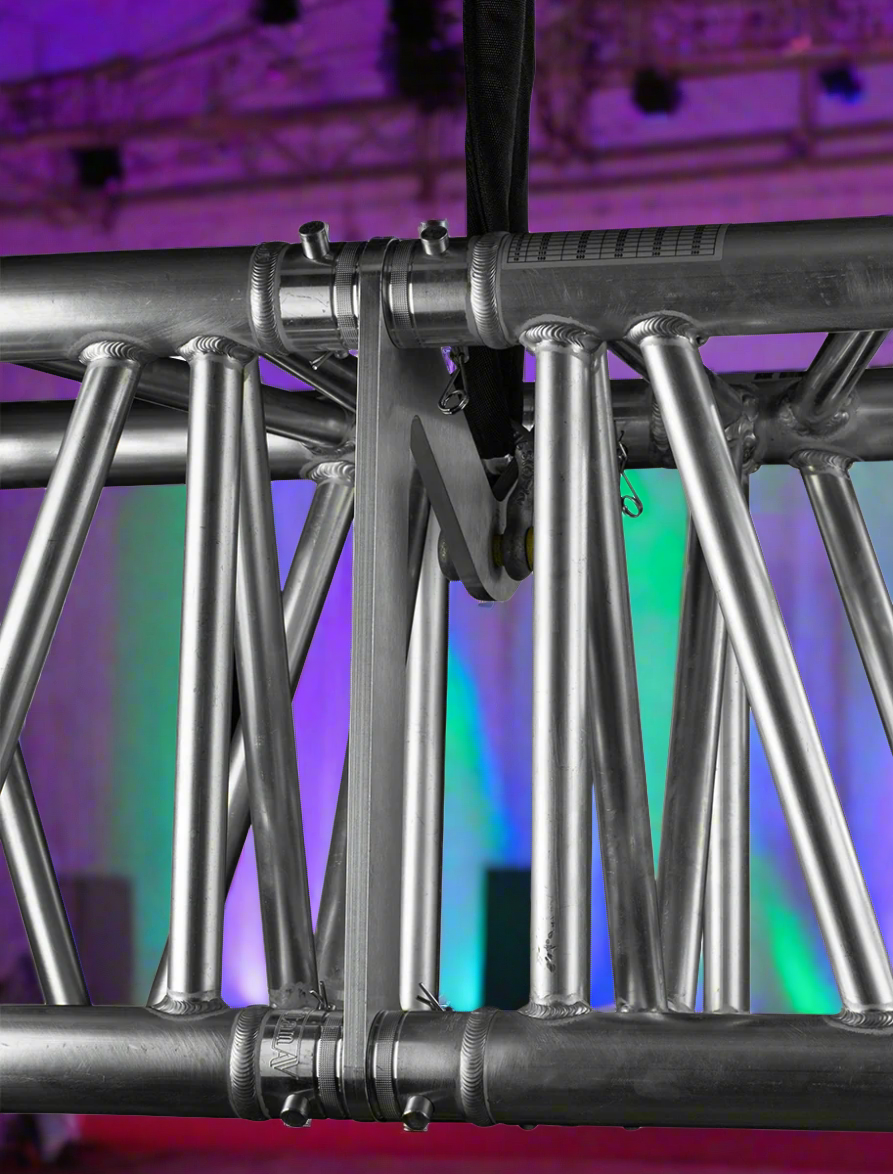

    • Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
    • Event application: Stage production, Venues, Exhibitions, Clubs & Churches
    • Dimensions: 400 x 400 x 100mm (DxHxW) (Including spigots)
    • Material: 6082-T6 Aluminium plate, 10mm thick.
    • Weight: 3.9 Kg
