Titan AV Modular U-Light Frame 600mm Width, Black
Titan AV Modular U-Light Frame 600mm Width, Black
Titan AV Modular U-Light Frame 600mm Width, Black
Titan AV Modular U-Light Frame 600mm Width, Black
  • SKU: TR-U-DROP600

Titan AV Modular U-Light Frame 600mm Width, Black

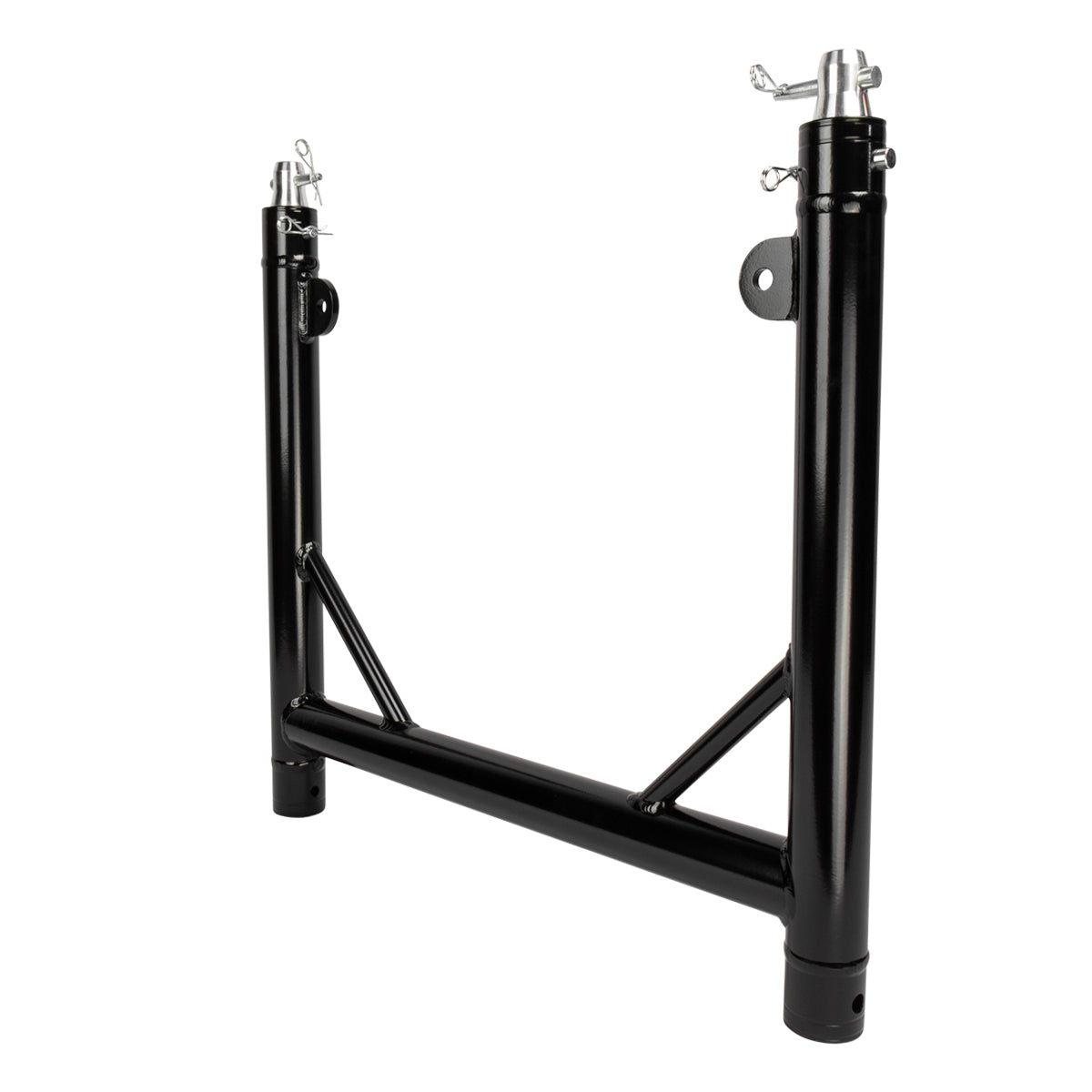

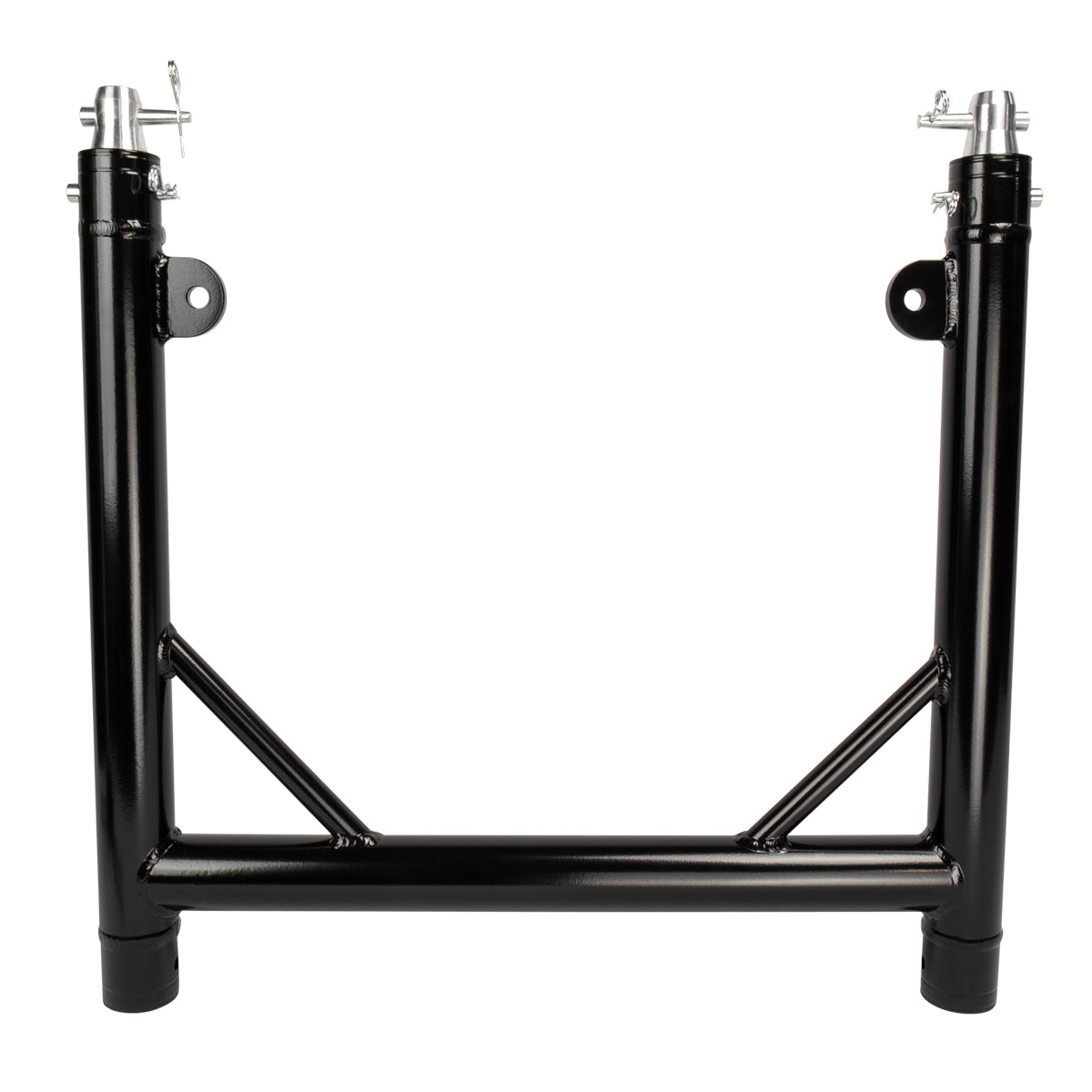

    This U-Torm, also know as a U-frame is a flexible solution to hanging drop positions for lighting fixtures. As well projection or other equipment in a completely modular design. Comprised of lightweight modules and sections, the U-Torm allows endless configurations for single fixtures, double hangs or ladders of multiple fixtures, which can also be expanded to create a wall of hanging positions.

    The U-Torm system has been designed for quick deployment and take down in any environment. The lightweight aluminium construction design is reinforced to provide added durability and stability. Handy safety point attachments are fitted on each side of the U-Torm to cater for multiple fixture types.

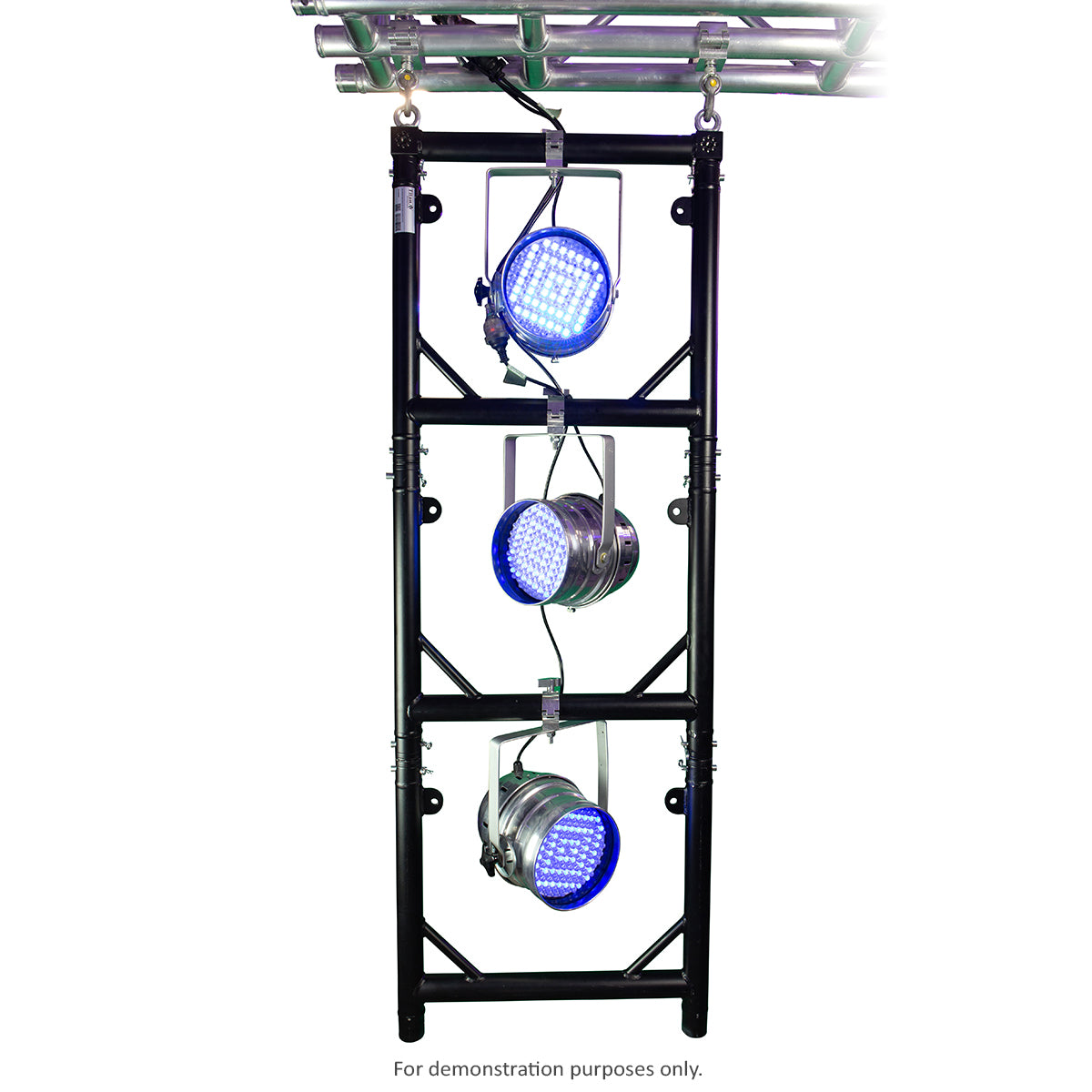

    The U-Torm DROP600 is capable of taking center points load of 20 kg. Additionally if hung in a ladder configuration it is possible to mount up to five fixtures, one fixture off each module. U-Torm brackets are available in a black finish as standard. As well as other colors can be provided on request.

    Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.


    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Rigging applications: moving heads, wash, blinder & parcan's
    • Event application: Stage production, Venues, Exhibitions, Clubs & Churches

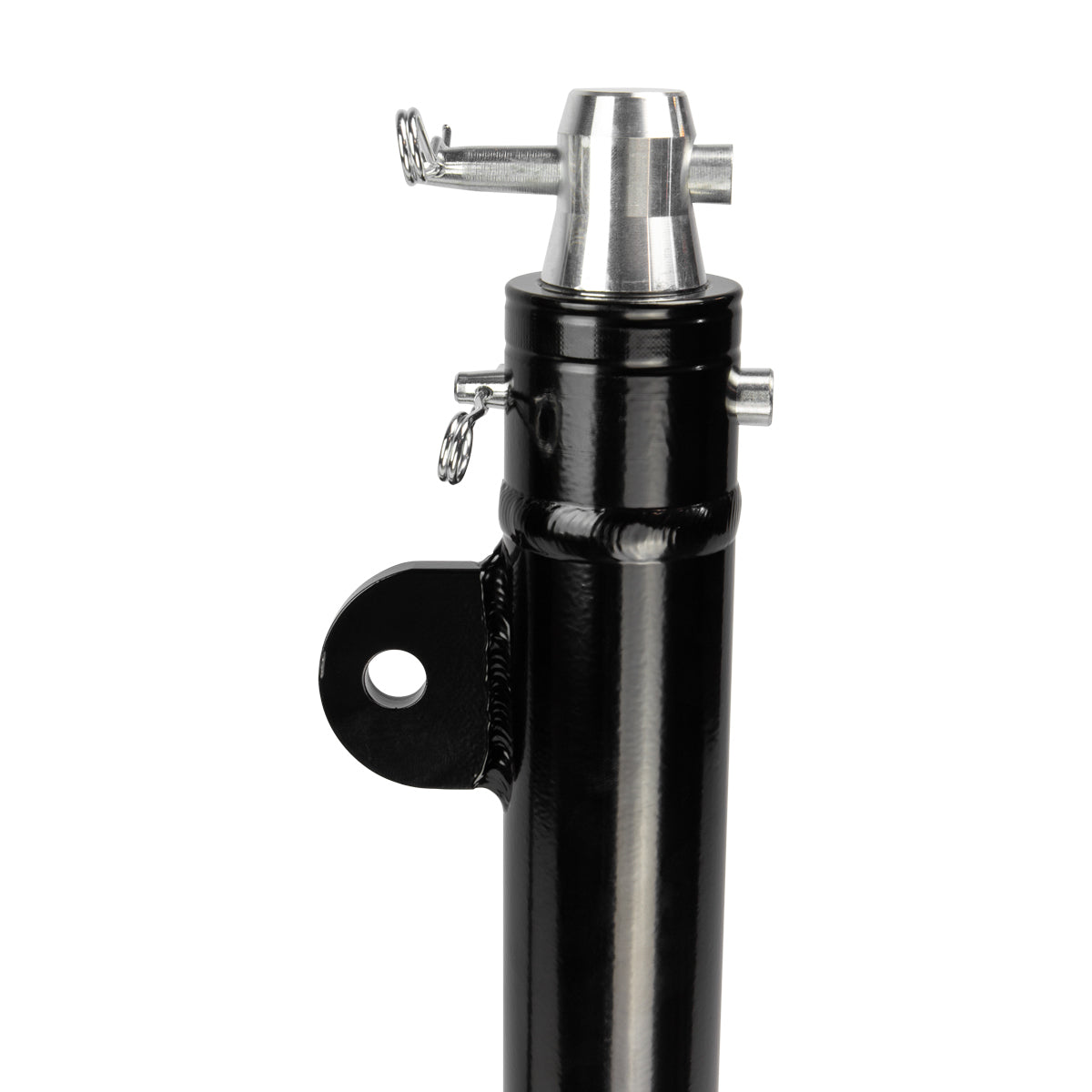

    • Supplied fitted with conical couplers
    • Maximum hung U-Torm units: 5
    • Warranty: 2-year


    • Colour: Black (powder coat)
    • Outer Dimensions: 600 x 550 x 50mm (WxHxD)
    • Inner Dimensions: 500 x 430-490 x 50mm (WxHxD) (Height is dictated by setup, for more info please contact VFM)
    • Centre Point loading: 20 kg
    • Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 20x2mm
    • Weight: 3.8 kg
    • 1 x U-Frame / U-Torm modular lighting frame
