TAV cables are a sound investment whether it be in pro audio, band, AV, media, communications or power applications you can rest assured the cables will offer the highest quality and reliability available in the market.

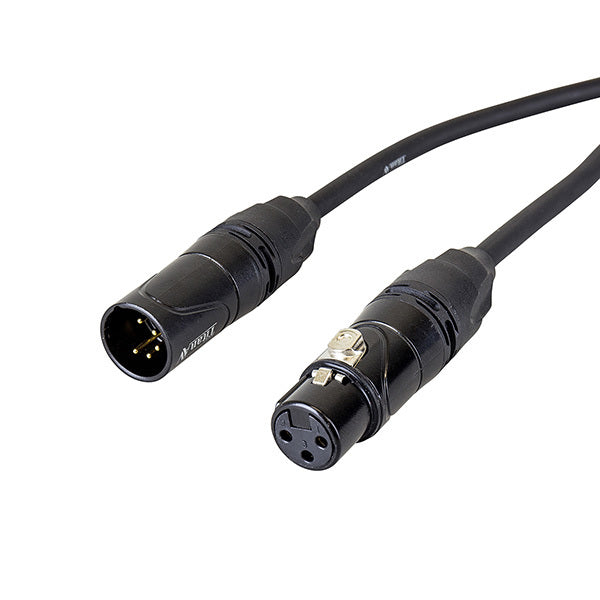

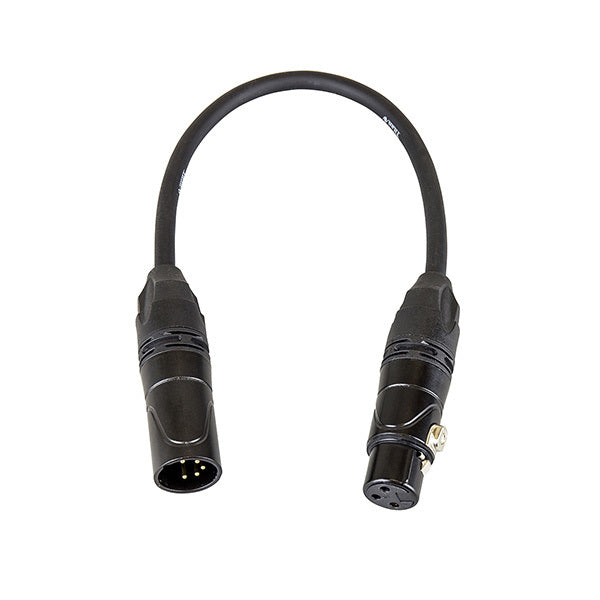

This Titan AV 5 Pin to 3 Pin DMX Adapter is designed to convert a 5-pin DMX device out or cable into a 3-pin configuration for use with 3-pin DMX. Supplied fitted with a 5-pin male XLR cannon to 3-pin female XLR cannon. Our TAV cables use high end custom connectors, helical shielded cable & a tough PVC outer jacket to insure superior performance and reliability.
Wiring:
5-Pin XLR(Pin-1), 3-Pin XLR(Pin-1): Signal ground
5-Pin XLR(Pin-2), 3-Pin XLR(Pin-2): DMX Data –
5-Pin XLR(Pin-3), 3-Pin XLR(Pin-3): DMX Data +
5-Pin XLR(Pin-4), 3-Pin XLR(N/A): Auxiliary Data –
5-Pin XLR(Pin-5), 3-Pin XLR(N/A): Auxiliary Data +
Features:
• Limited life time warranty
• 1 x 5-pin XLR(M) to 3-pin XLR(F) adapter DMX cable
• Clear heat shrink fitted for easy labelling
• DMX matching impedance: 110 Ohm
• High quality custom connectors and cable
• Gold Plated contact points
• 6.5mm thick microphone cable
• Perfect for use with DMX ready lighting, fog machines, hazers and controllers
• Multi-banded oxygen-free copper conductor
• PE insulation which provides a low capacitance dielectric
• Conductive PVC helps to reinforce shielding
• Helical shield resists electromagnetic interference
• Free from micro-phonics
• Durable flexible matte black outer PVC jacket keeps the cable abrasion-resistant
• 100% Screening
• Length: 34cm (Total length including cannons)
• Colour: Black
