SKU: TR-SQ30-45D

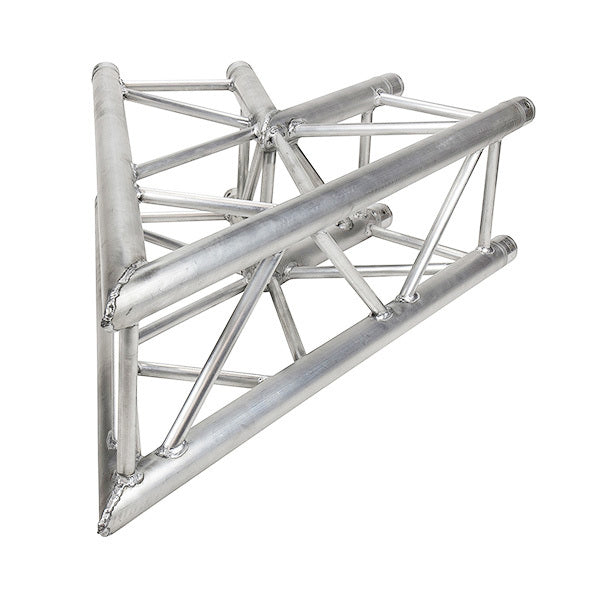

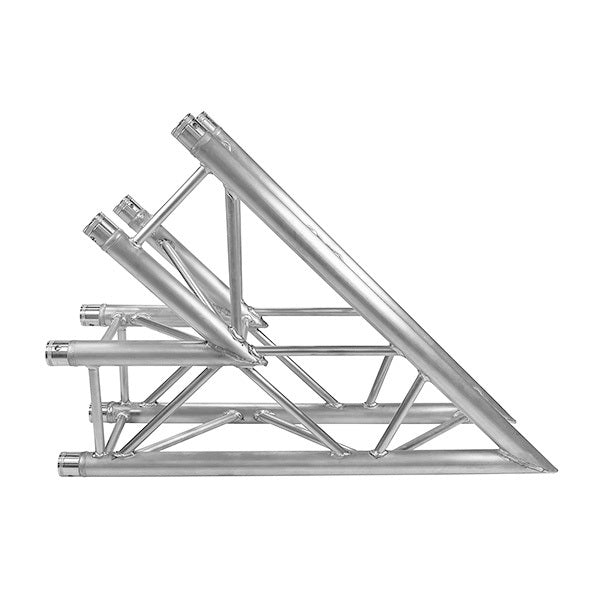

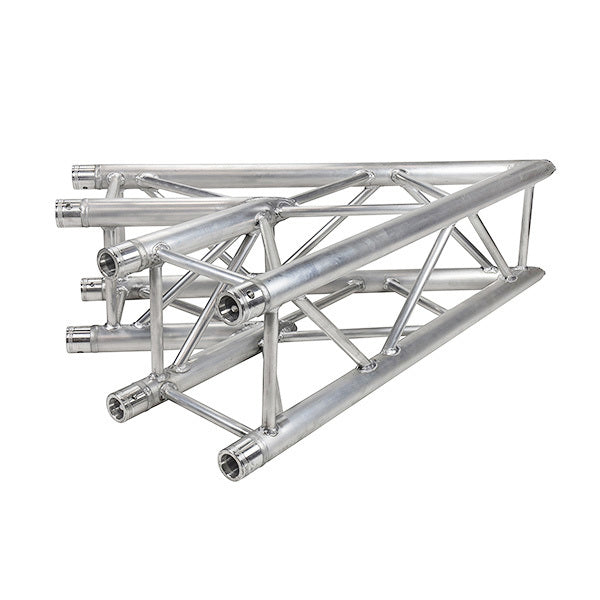

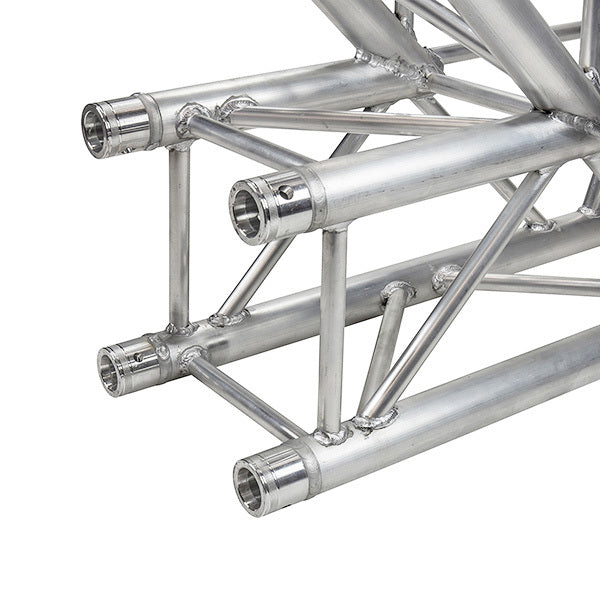

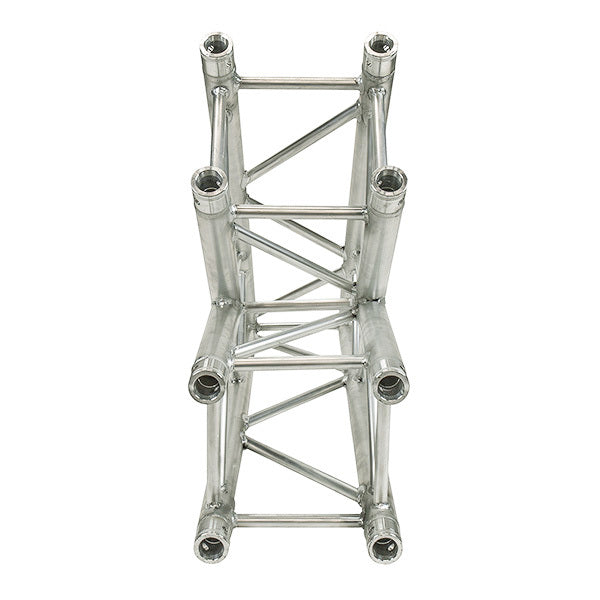

45 Deg Corner 290 Box truss

$356.00

Parcel Post Delivery: $14.95

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Bulk Freight (Forklift Required): $110
Flat-rate shipping applies, with a forklift required at your delivery location.

Bulk Freight & Tailgate: $188
Includes delivery with a tailgate lift to safely unload your heavy items at any site without a forklift. Not sure? Call us at (07) 3423 3463.

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Description

This is one of the more popular trusses used in Australia, perfect for light to medium duty truss systems where general use and short lengths are needed. More common applications are DJ / band lighting, small to medium stage work, exhibitions and shop displays. This box trussing is constructed from 6082-T6 aluminium 50 x 2mm main tube and 20 x 2mm braces. The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the general public.

Features:

  • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
  • 2 way 45 degree corner truss
  • Set of spigots (conical couplers) and pins included in sale
  • Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
  • Warranty: 2 years

Specs:

  • Weight: 8.5 kg
  • Material: 6082-T6 Aluminium
  • Main tube: 50mm (Wall thickness - 2mm)
  • Braces: 20mm (Wall thickness - 2mm)
  • 1 x Box Truss 2 way 45 degree corner 290mm

290mm Box Truss Load Table

Span Uniformly Distributed Load (UDL) Deflection Centre Point Load (CPL) Deflection
M KG/M MM KG MM
3 320 10 1260 12
4 285 24 1080 19
5 290 50 960 29
6 175 60 870 42
7 110 69 780 57
8 78 80 720 720
9 55 90 600 89
10 40 100 600 99
11 30 109 500 109
12 24 124 420 118
