Kindly be aware that this item is available for special order. Feel free to reach out to our sales team at sales@titanav.co for additional details.
This is one of the more popular trusses used in Australia, perfect for heavy duty truss systems where long lengths are needed. Common applications are stage production, outdoor venues, LED screens, outdoor structures, exhibitions and shop displays.

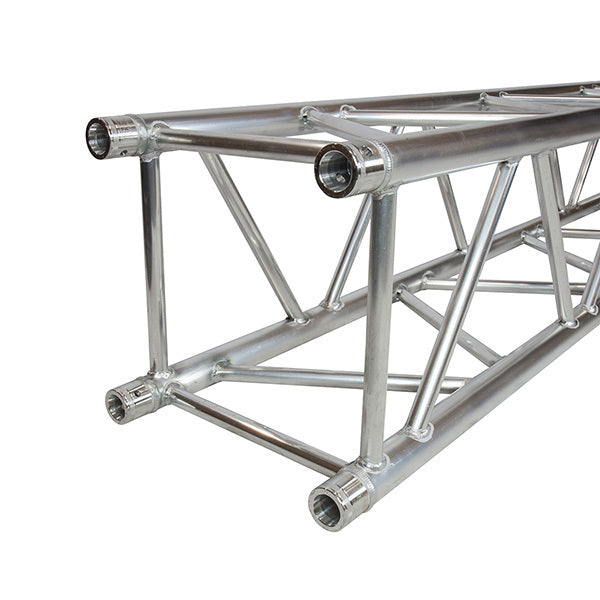

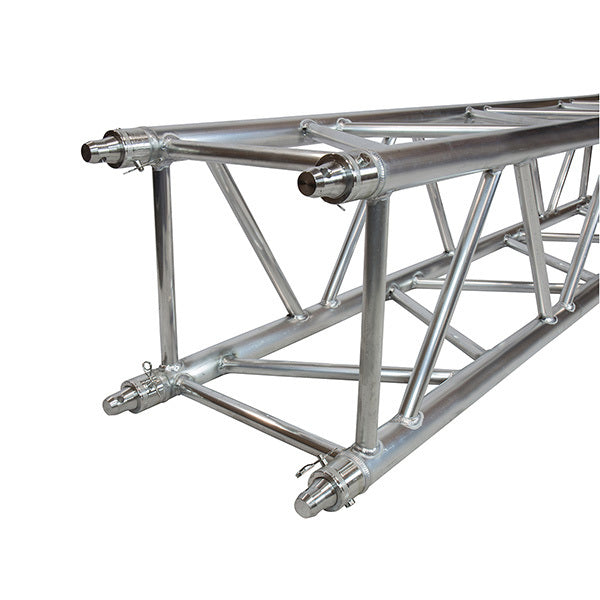

This 400 box trussing is constructed from 6082-T6 aluminium 50x2mm main tube and 25x3mm braces. The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the public.
400mm Square Truss Load Table
| Span | Uniformly Distributed Load (UDL) |
Deflection | Centre Point Load (CPL) |
Deflection |
| M | KG/M | MM | KG | MM |
| 1 | 795 | 9.0 | 734.0 | 6.9 |
| 2 | 398 | 9.7 | 708.0 | 7.4 |
| 3 | 265 | 10.4 | 682.0 | 7.9 |
| 4 | 199 | 11.3 | 656.0 | 8.6 |
| 5 | 159 | 12.4 | 630.0 | 9.4 |
| 6 | 133 | 13.6 | 604.0 | 10.3 |
| 7 | 114 | 15.0 | 578.0 | 11.4 |
| 8 | 99 | 17.0 | 552.0 | 12.8 |
| 9 | 88 | 19.4 | 526.0 | 14.7 |
| 10 | 79 | 22.6 | 500.0 | 17.2 |
| 11 | 72 | 27.0 | 474.0 | 20.6 |
| 12 | 66 | 34.0 | 448.0 | 25.8 |
| 13 | 61 | 45.0 | 422.0 | 34.3 |
| 14 | 57 | 68.0 | 396.0 | 51.5 |
| 15 | 53 | 136 | 370.0 | 103 |
