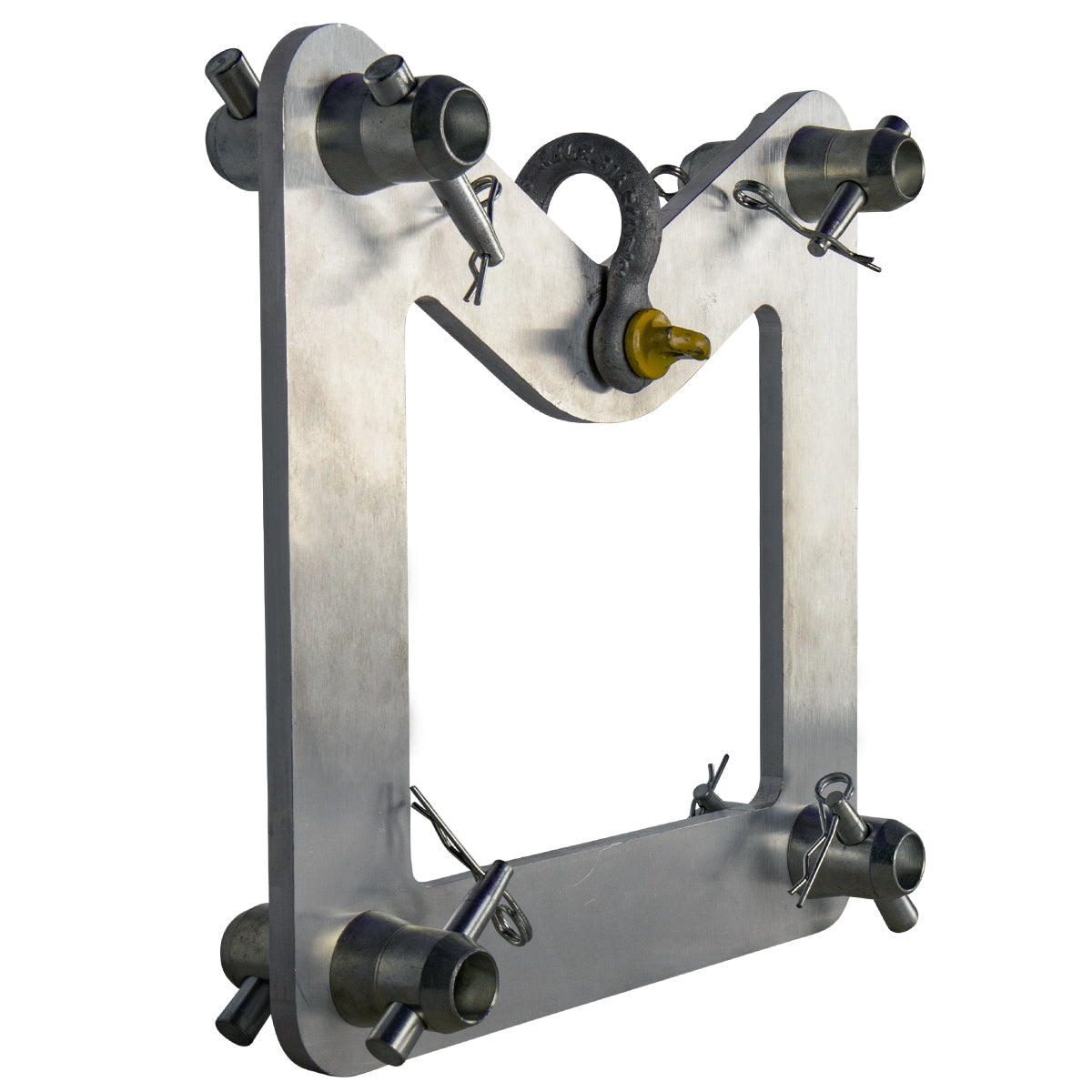

290 Inline Lifting Bracket - 1000Kg SWL
Description
Description

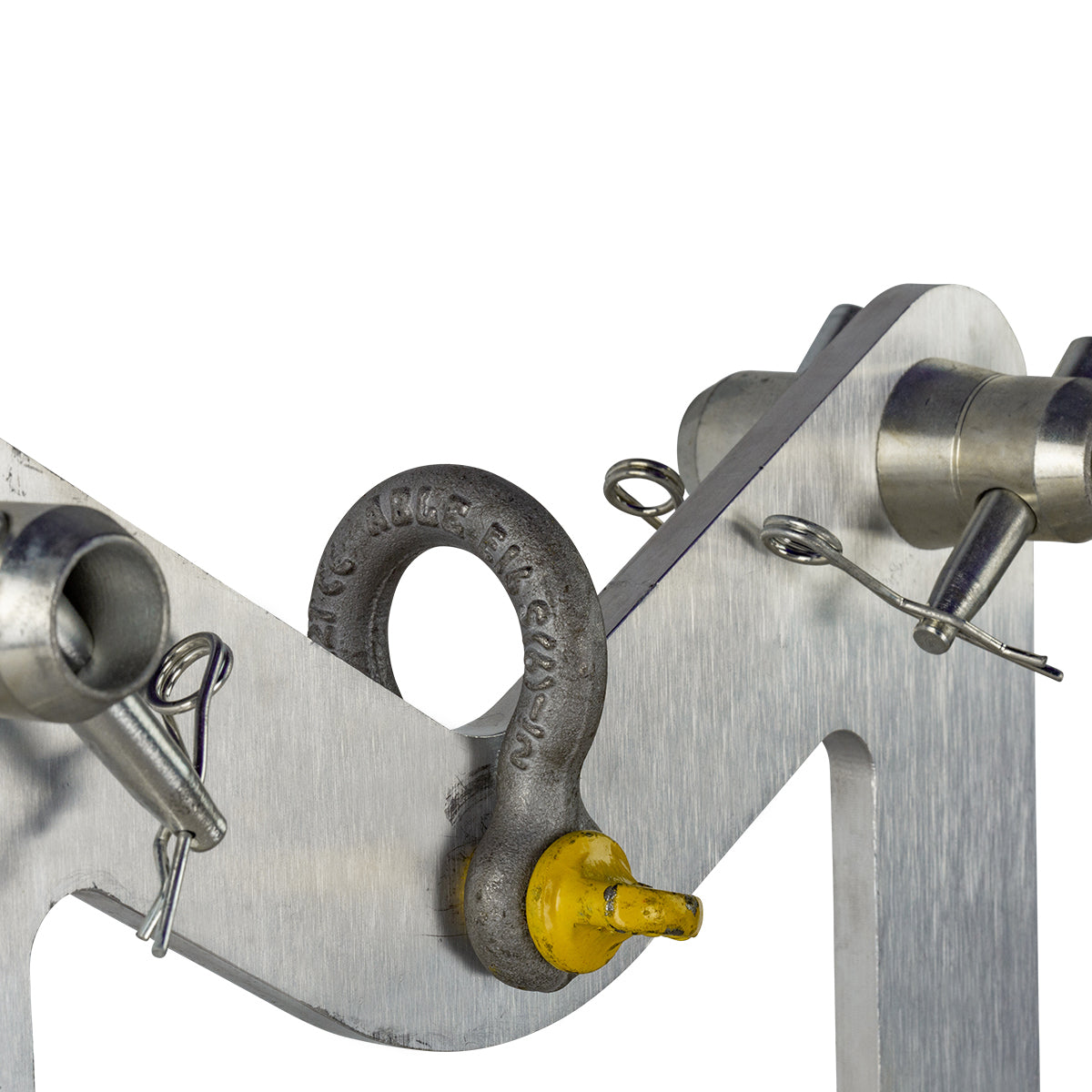

Titan AV 290 inline lifting bracket (also known as a truss end plate suspension bracket). Supplied with bow shackle, half spigots, pins and clips.
Independently tested by Alfa Test (ISO/IEC 17025, NATA accredited) to verify compliance with Australian engineering standards. The bow shackle conforms to Australian Standard AS2741 and is supplied with working load limit, nominal size, grade, batch number and supplier identification.
*Note: Safe Working Load (SWL) 1000 kg*
Key Features:
- 2-year manufacturer’s warranty
- High quality build and design
- Includes: 1 x 290 truss inline lifting bracket
- Rigging applications: video walls, moving heads, heavy lighting, display panels, signage, curtains
- Event applications: stage production, venues, exhibitions, clubs, churches
- Compatible with Titan AV 290 box truss
Product Details:
- Material: 6082-T6 aluminium plate, 10 mm thick
- Finish: Silver mill finish
- Certification: Independently tested (ISO/IEC 17025, NATA) & shackle to AS2741
- Included hardware: Bow shackle, half spigots, pins, clips
Specifications
Specifications
Delivery & Pick-up Options
Delivery & Pick-up Options
We offer Brisbane pickup from our Northgate warehouse, or delivery Australia-wide with clear, upfront pricing for most orders.
BRISBANE PICKUP
Free pickup is available from our Brisbane warehouse.
Orders are usually ready within 1 business day.
PARCEL DELIVERY — $15.95
For small, lightweight items within standard parcel limits (each item under 22kg and 1.8m).
Tracking details are sent once your order is dispatched.
BULK DELIVERY — $129
For large or heavy items that can’t be sent as a standard parcel.
Requires a forklift or suitable unloading equipment at delivery.
BULK DELIVER + TAILGATE — $199
For large or heavy items when unloading equipment isn’t available.
The truck uses a built-in lift to safely unload your order.
Upfront Delivery Pricing
Upfront delivery pricing applies to around 97% of orders. In rare cases where delivery access, size, or location results in higher carrier costs, we’ll always contact you before dispatch. No additional charges are applied without your approval.
For full delivery details, FAQs, and terms, see our Shipping & Delivery page.
