Kindly be aware that this item is available for special order. Feel free to reach out to our sales team at sales@titanav.co for additional details.
This is one of the more popular trusses used in Australia, perfect for medium - heavy duty truss systems where general use and short - long lengths are needed. More common applications are stage production, outdoor venues, LED screens, outdoor structures, exhibitions and shop displays.

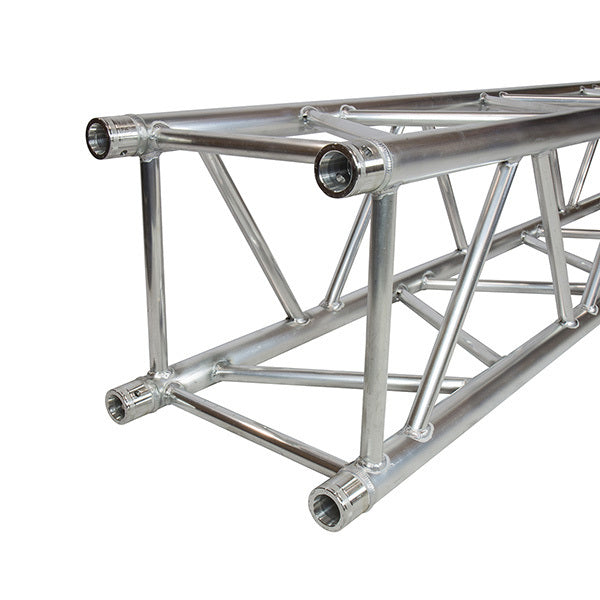

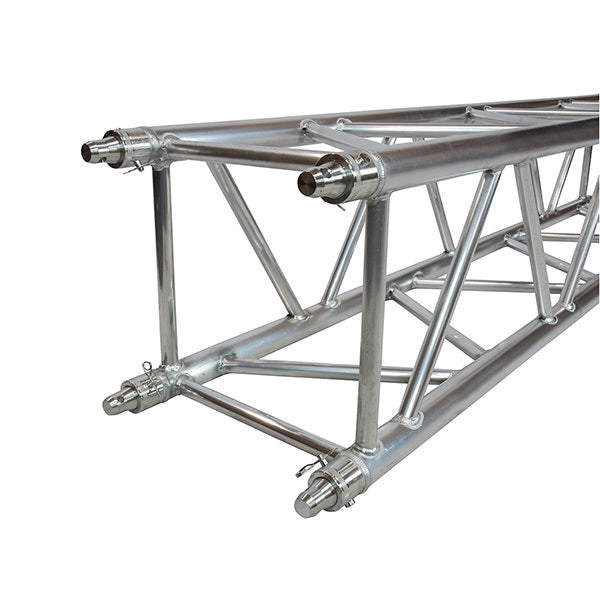

This box trussing is constructed from 6082-T6 aluminium 50x2mm main tube and 25x3mm braces. The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the public.
| Span | Uniformly Distributed Load (UDL) |
Deflection | Centre Point Load (CPL) |
Deflection |
| M | KG/M | MM | KG | MM |
| 1 | 795 | 9.0 | 734.0 | 6.9 |
| 2 | 398 | 9.7 | 708.0 | 7.4 |
| 3 | 265 | 10.4 | 682.0 | 7.9 |
| 4 | 199 | 11.3 | 656.0 | 8.6 |
| 5 | 159 | 12.4 | 630.0 | 9.4 |
| 6 | 133 | 13.6 | 604.0 | 10.3 |
| 7 | 114 | 15.0 | 578.0 | 11.4 |
| 8 | 99 | 17.0 | 552.0 | 12.8 |
| 9 | 88 | 19.4 | 526.0 | 14.7 |
| 10 | 79 | 22.6 | 500.0 | 17.2 |
| 11 | 72 | 27.0 | 474.0 | 20.6 |
| 12 | 66 | 34.0 | 448.0 | 25.8 |
| 13 | 61 | 45.0 | 422.0 | 34.3 |
| 14 | 57 | 68.0 | 396.0 | 51.5 |
| 15 | 53 | 136 | 370.0 | 103 |
