Titan AV Box Truss Lighting Stand 2.5m Trussing, 800mm Base & Top Plate

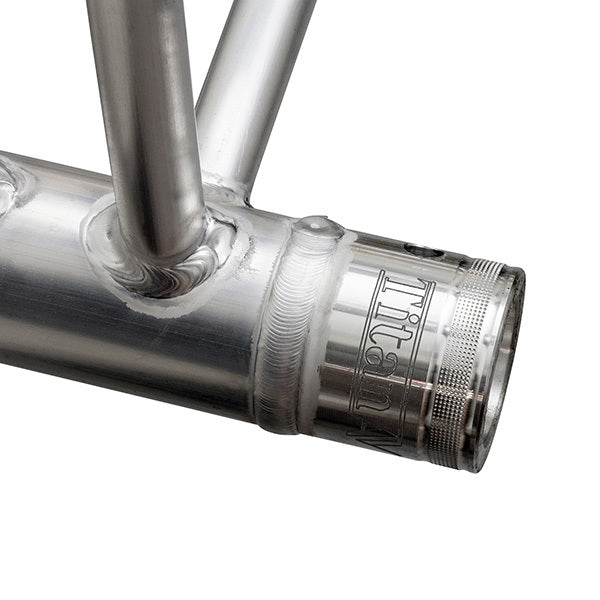

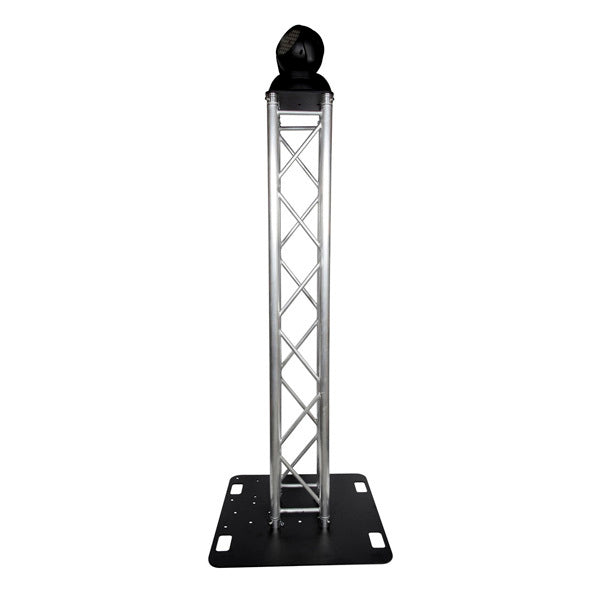

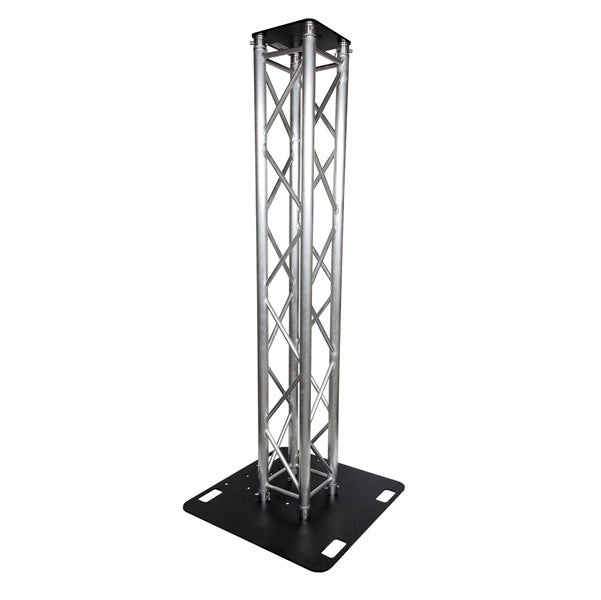

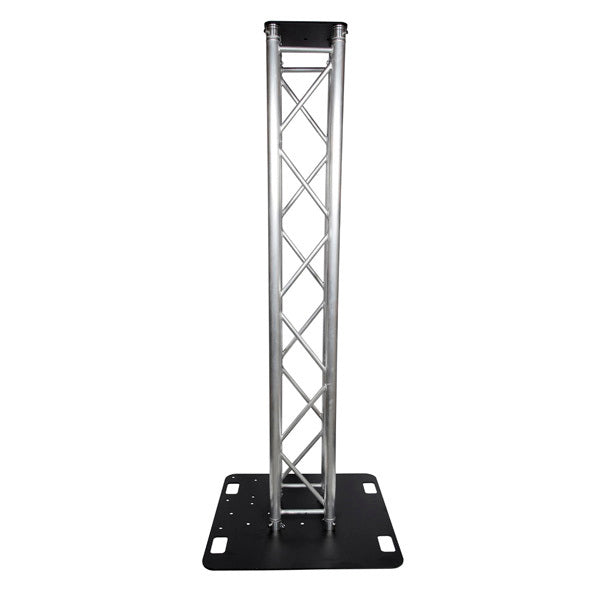

Moving head truss stand, perfect for visual effects and stage props. Package; TAV 2.5m Box truss, TAV Steel base plate 800 x 800mm & Steel top plate 300 x 300mm. Base plate has centre, centre side & corner mount options, making this upright kit extremely flexible and suitable for most installations. More common applications are DJ / band lighting, small to medium stage work, exhibitions and shop displays. Box trussing is constructed from 6082-T6 aluminium 50 x 2mm main tube and 20 x 2mm braces. Australian engineering certification insures peace of mind when work with entertainment venues and the general public.

*Please note moving head light is for demo purposes only, not included in the sale*
​
Features:

• Warranty: 2 years
• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
• Top plate pre-drilled with 14mm hole for mounting moving head lights

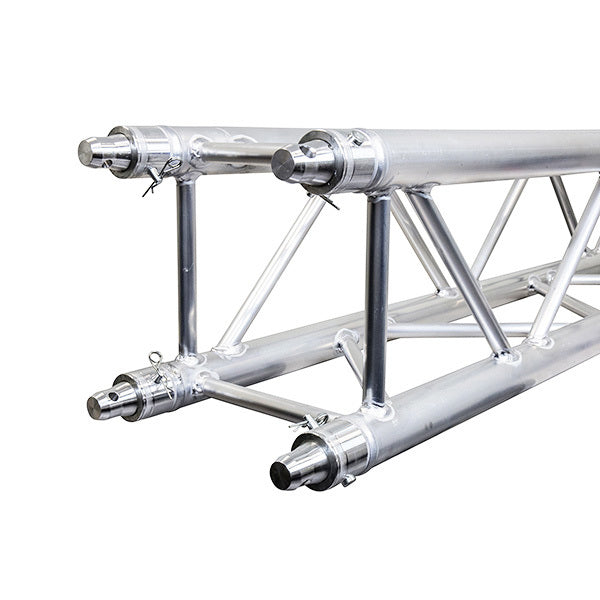

• Spigots, Pins & Clips supplied
• Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions

Specs:

• Material: 6082-T6 Aluminium
• Main tube: 50mm (Wall thickness - 2mm)
• Braces: 20mm (Wall thickness - 2mm)
• Base Plate: Laser cut 800 x 800 x 8mm steel plate, Black powder coat finish
• Top Plate: Laser cut 300 x 300 x 8mm steel plate, Black powder coat finish
• Weight: 16 kg (Truss)
• Weight: 7 kg (Top plate)
• Weight: 40 kg (Base plate)

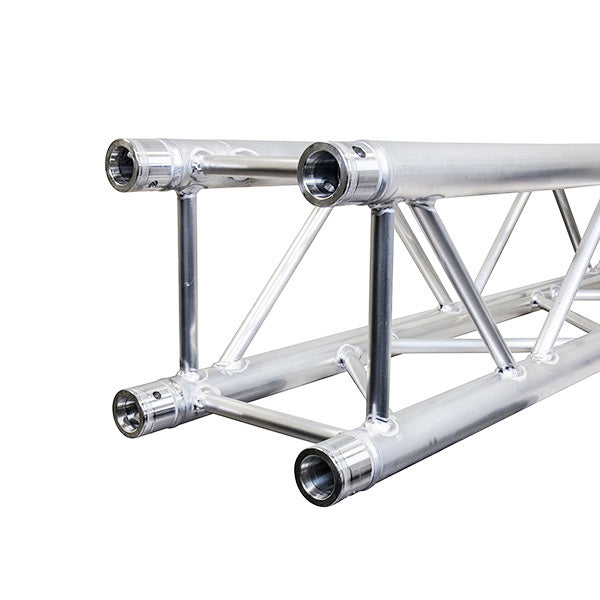

• 1 x 2.5m Box Truss 290mm
• 1 x Steel Top Plate 300x300mm
• 1 x Steel Base Plate 800x800mm
