Titan AV 400 Truss Lifting Bracket Kit, WLL 340 kg
  • SKU: KIT-0100

Titan AV 400 Truss Lifting Bracket Kit, WLL 340 kg

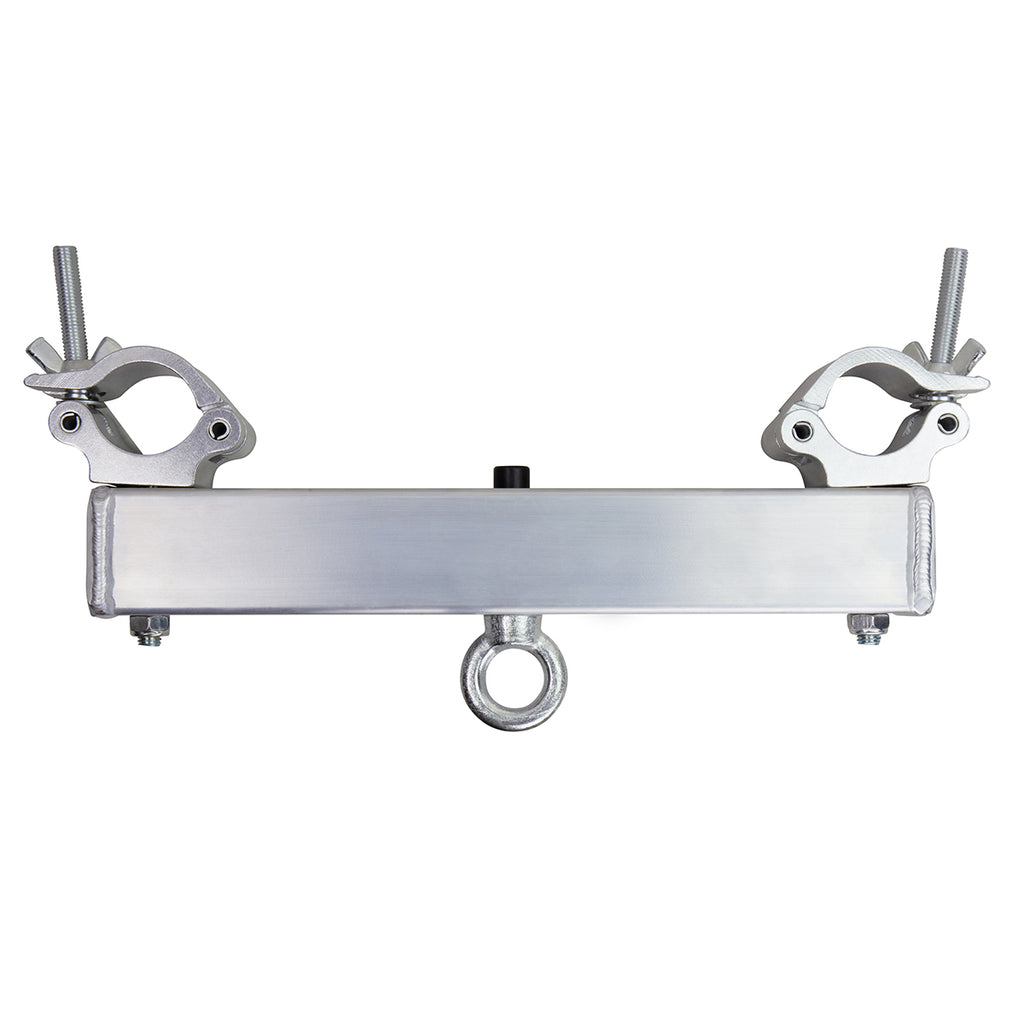

    This 400 truss lifing bracket kit is perfect for rigging applications with truss. High quality clamps (2 x TR-CLP50-H2) and M12 Eye nut WLL 340 kg (TR-CLP50-EN12), assembled on to RHS aluminium tube with welded billet end caps.
    Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV 50mm clamps comply with Australian engineering standards. The eye nuts conforms to Australia Standard DIN582, every eye nut conforms to DIN582 marked with a working load limit, nominal size, quality grade, batch numbered and supplier identification.
    *Please Note; Only the clamps is loaded rated to SWL of 500kg, it is highly recommended that max loading meets the working load limit of the eye nut(340 kg)*
    • 2-year manufacturer's warranty
    • 1 x 400 truss lifting bracket kit (2 x TR-CLP50-H2 (clamps) & 1 x TR-CLP50-EN12 (Eye Bolt))
    • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
    • Australian Standard DIN582
    • Eye Nut Dimensions: D-12mm, D1-30mm, D2-30mm, H-53mm & W-54mm
    • Will work with 50mm tube
    • Finish: Silver mill finish
    • Very high quality build and design
    • Max load rating 340kg
    • Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
    • Event application: Stage production, Venues, Exhibitions, Clubs & Churches
    • Dimensions: 450 x 200 x 50mm (DxHxW) (Including bolts)
    • Weight: 2.5 Kg
