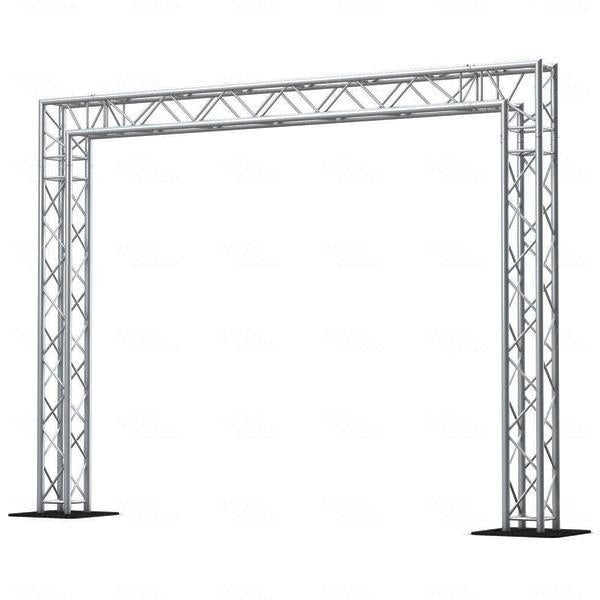

Titan AV 290mm Box Lighting Truss Arch Way 3.5m(H) x 7m(W)

This is one of the more popular trusses used in Australia, perfect for light to medium duty truss systems where general use and short lengths are needed. More common applications are DJ / band lighting, small to medium stage work, exhibitions and shop displays. This box trussing is constructed from 6082-T6 aluminium 50x2mm main tube and 20x2mm braces.

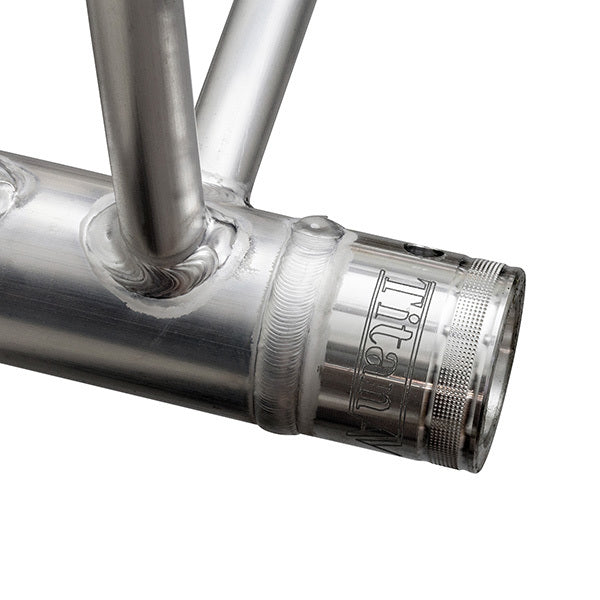

The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the general public. Steel bases plates included in this kit are the new TAV 800 steel plates, 3 (Centre, centre side & corner) positioning spots on the plate offers maximum flexibility for all jobs. This is the complete DJ & Band package.

After a different setup? Email the Titan AV team with your ideas.

• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
• Set of spigots (conical couplers) and pins included in sale
• Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
• Warranty: 2 years

• Aluminium Stage Truss Frame 3.5m (H) x 7m (W)
• Box Truss 290mm
• Height: 3.5m (3.2m Clearance/Internal)
• Width: 7m (6.4m Clearance/Internal)
• Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 20x2mm
• What's in this kit?

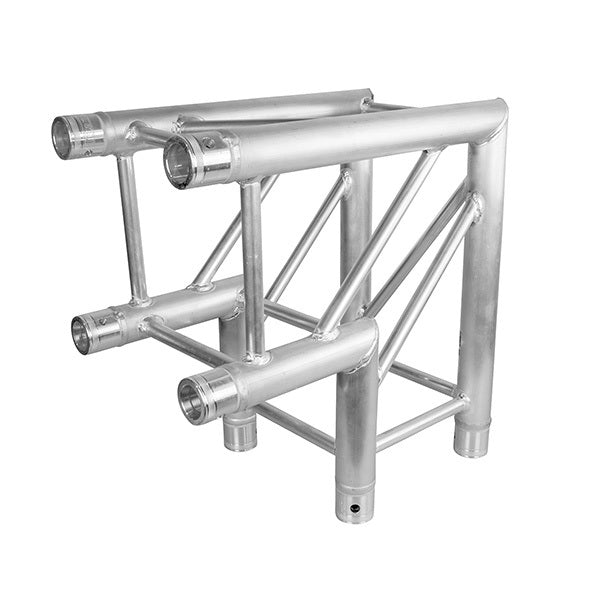

• 2 x 2-Way 290 Box Truss corners

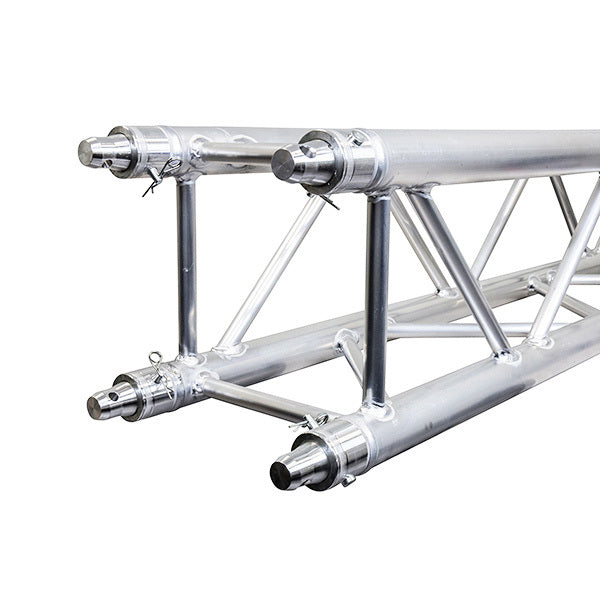

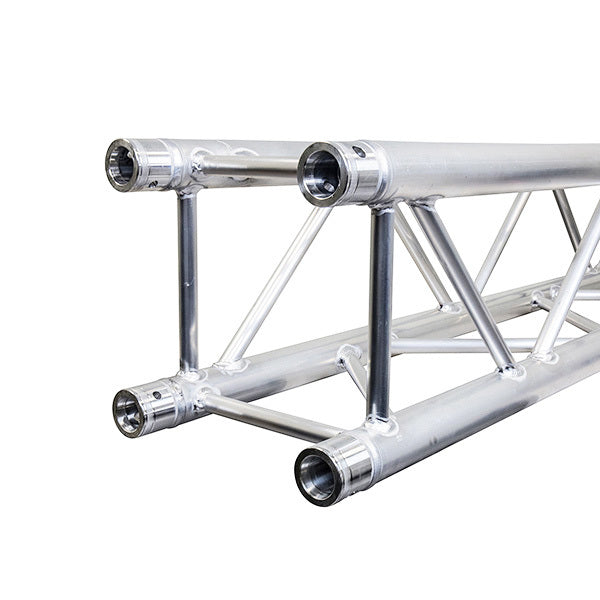

• 4 x 3m 290mm Box Truss lengths
• 2 x Steel base plates 800x800mm
