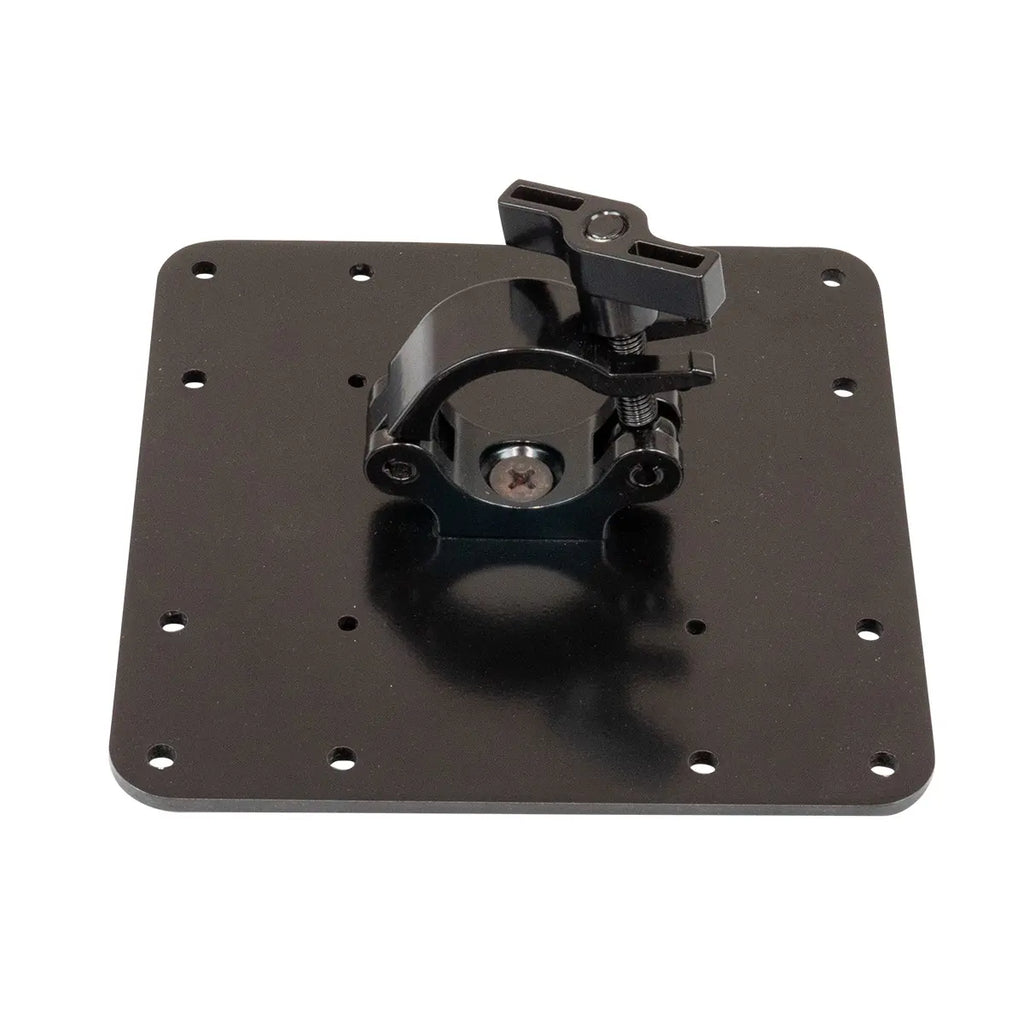

This 200 VESA TV mount adapter plate has been designed to mount a TV onto 290 Box or Tri truss or a 50mm tube, mounting can be vertical or horizontal depending on the application. This adapter mount suits TV's with 200x200, 100x100, 200x100 and 100x200 Vesa mounting standard, single clamp design allows for fast and easy setup on one of the main tubes found on box and tri truss.
This Titan AV Vesa mounting bracket is designed and made in Australia, plates are CNC milled from 6mm Aluminium alloy 5005H34 and finished off in a Dulux satin black powder coat.
Is this the right bracket for your TV? These two tips will help:
- Make sure the weight of your TV is under the max weight of the bracket (listed in the features below).
- Measure the mounting holes in the back of your TV - measure up & across - then compare your measurements with the VESA / mounting hole patterns listed below.
- Designed and manufactured in Australia
- 12 months manufacturer's warranty
- 1 x Titan AV 50mm wrap around clamps (TR-CLP50-H1)
- 1 x Titan AV 290mm truss adapter plate (TR-CLP50-TVVESA)
- Suits TV size: 23" - 42" (Maybe suitable for larger TV's if VESA mount and weight are within brackets spec's)
- Designed to work with: 290mm Box, Tri Truss and 50mm Tube
- Profile: 14mm (Distance bracket sits off truss tube)
- Dimensions: 230x230x100mm (HxWxD)
- Vesa mount/ mounting holes: 100x100, 100x200, 200x100 & 200x200mm
- Max load: 40kg
- Colour: Black
- Perfect for Shop displays, exhibitions, theatre, schools, corporate and production companies
- Weight: 1.2kg
