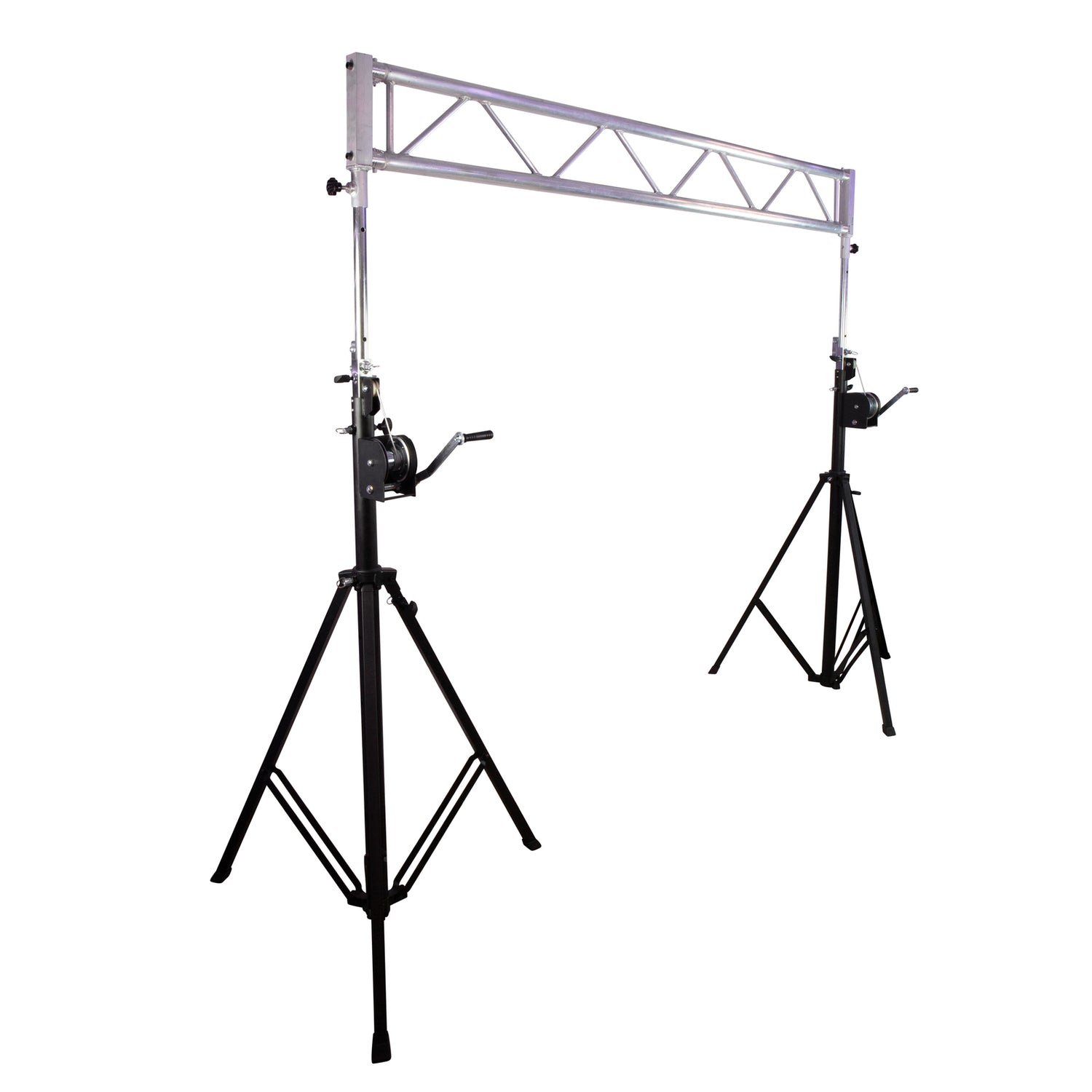

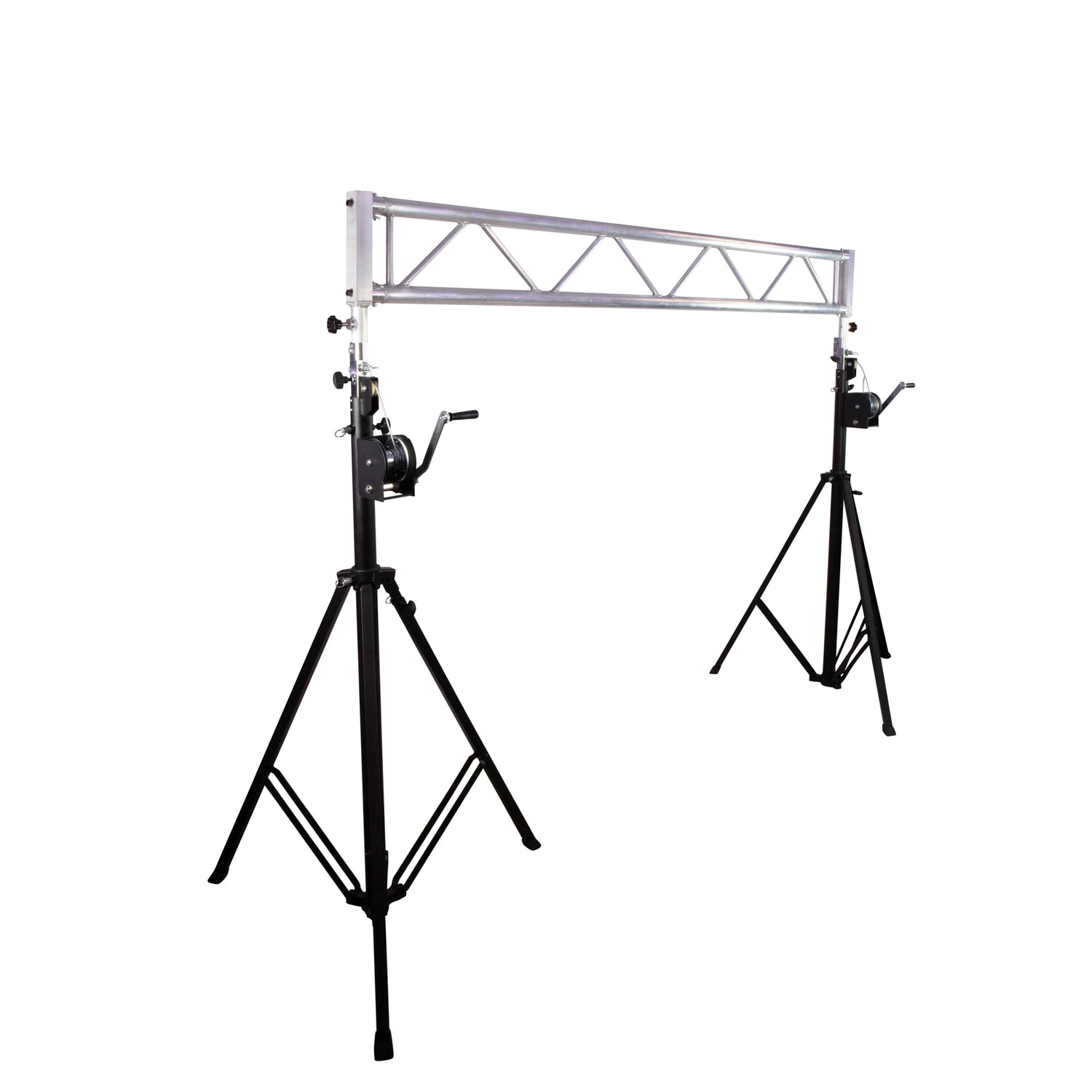

Titan AV winch-up lighting stand & flat truss system 6m wide x 4.1m height.
Package includes:

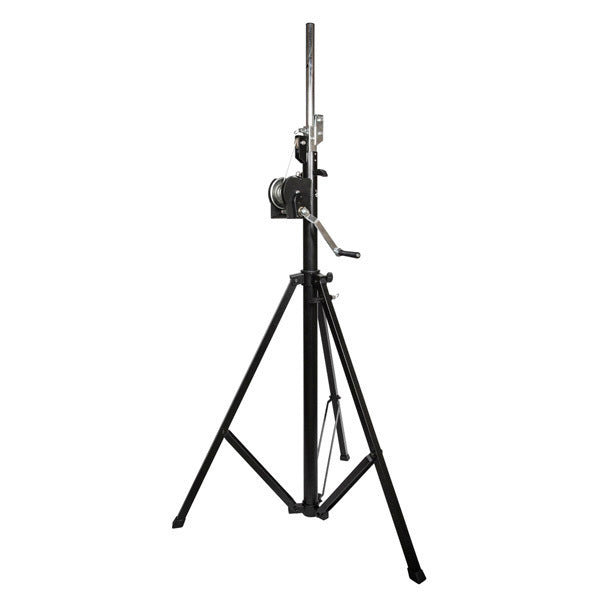

2 x Titan AV D-XL566 winch up stands
2 x Titan AV TR-SF30-300 290mm flat truss (6m span in total)

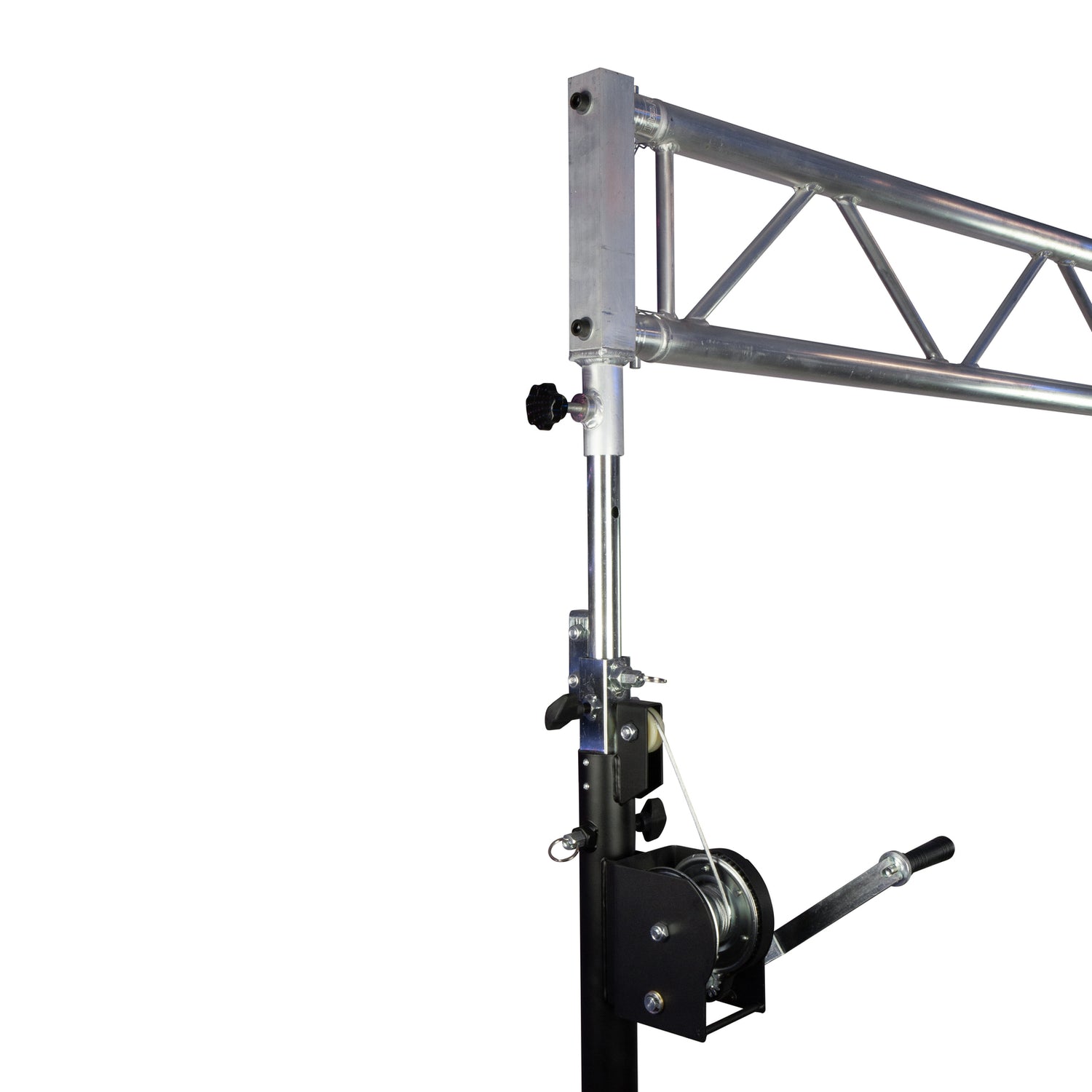

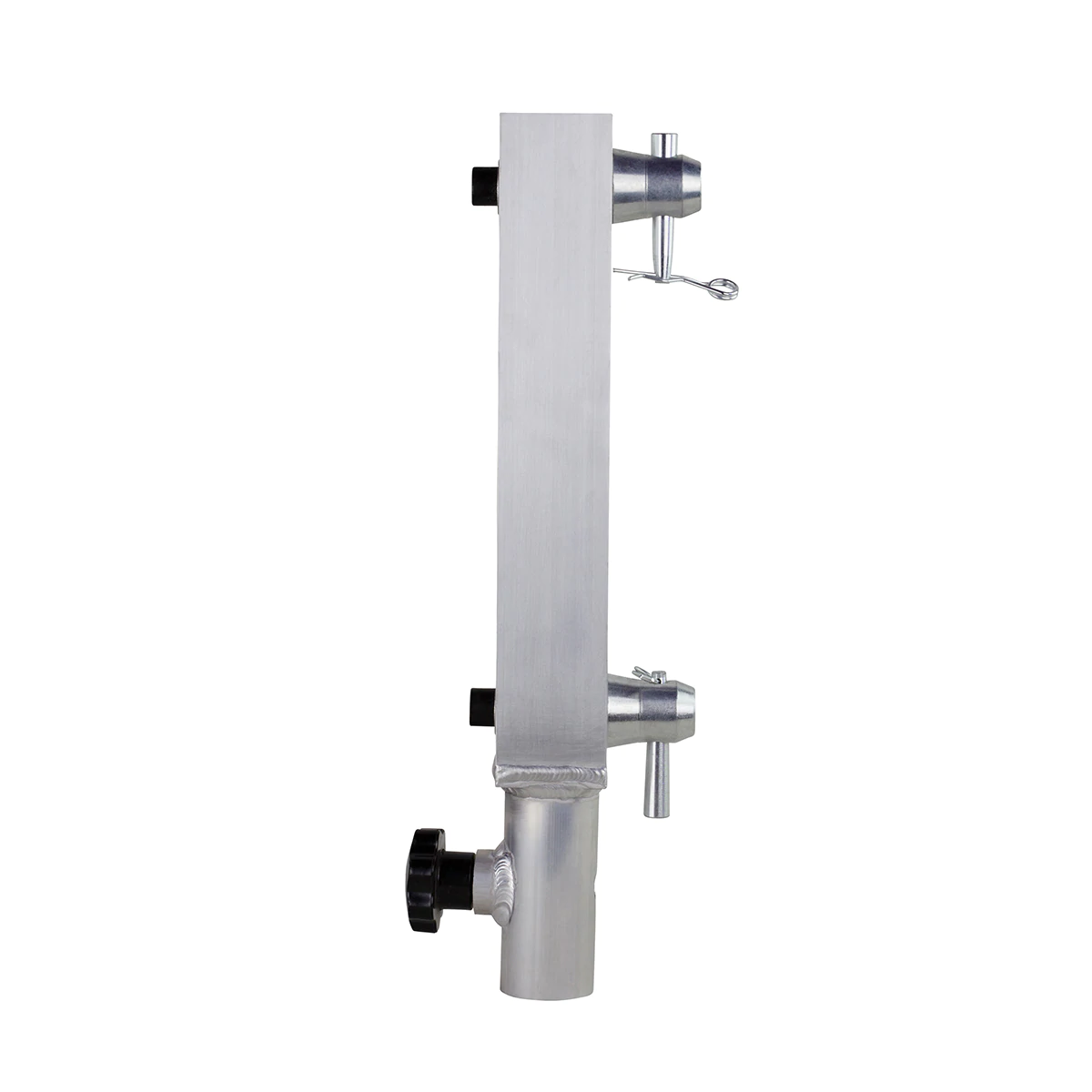

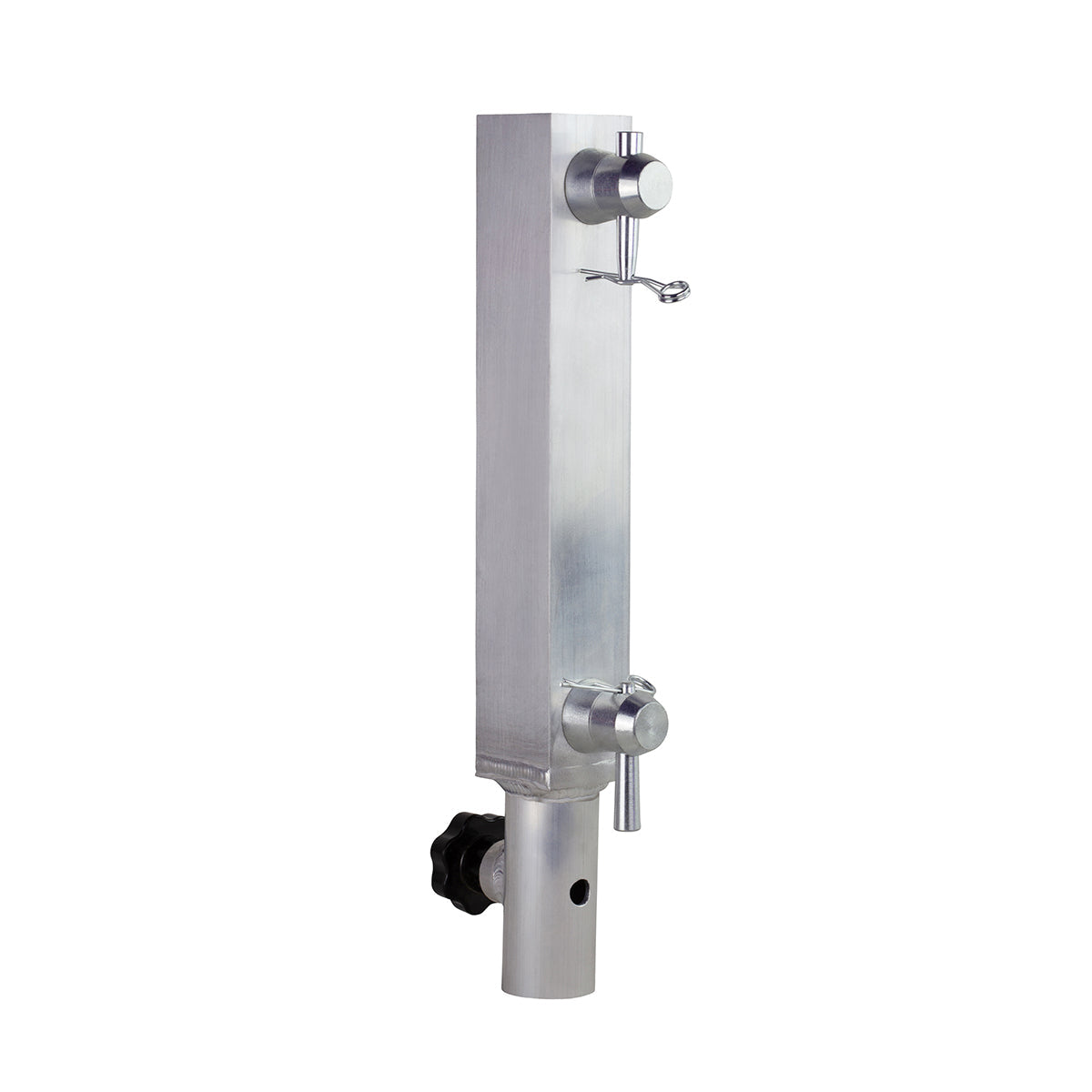

2 x Titan AV flat truss 35mm to 290 Flat truss adaptor
Total load capacity 20kg per meter
Features:
• High quality metal safety pins
• Winch has built in clutch & fold down handle
• Adjustable foot print(3 settings): 86-125cm
• Length adjustment on one leg for un-level ground: 10cm, 1.5cm increments by 8 points
• Height adjustment: 170-410cm
• Fold down size: 166 x 22 x 29cm (HxWxD)
• Max loading weight: 80 kg
• Non-slip rubber feet
• Easy fold up and down
• Compact for transportation
• Material: Steel
• Colour: Black
• Weight: 25 kg
• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)

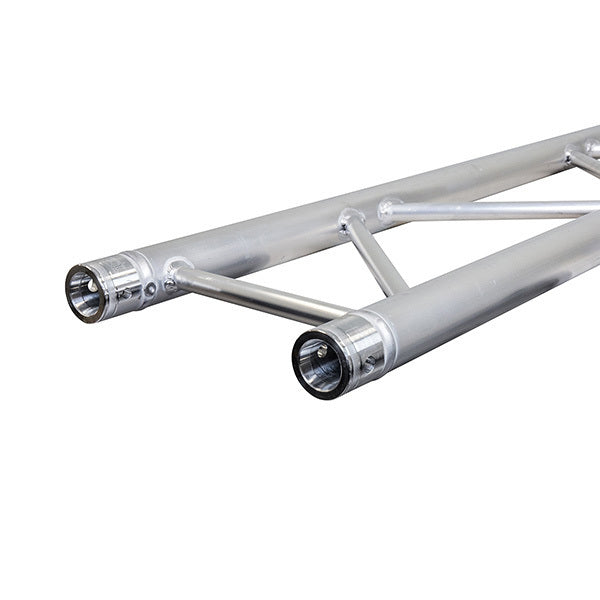

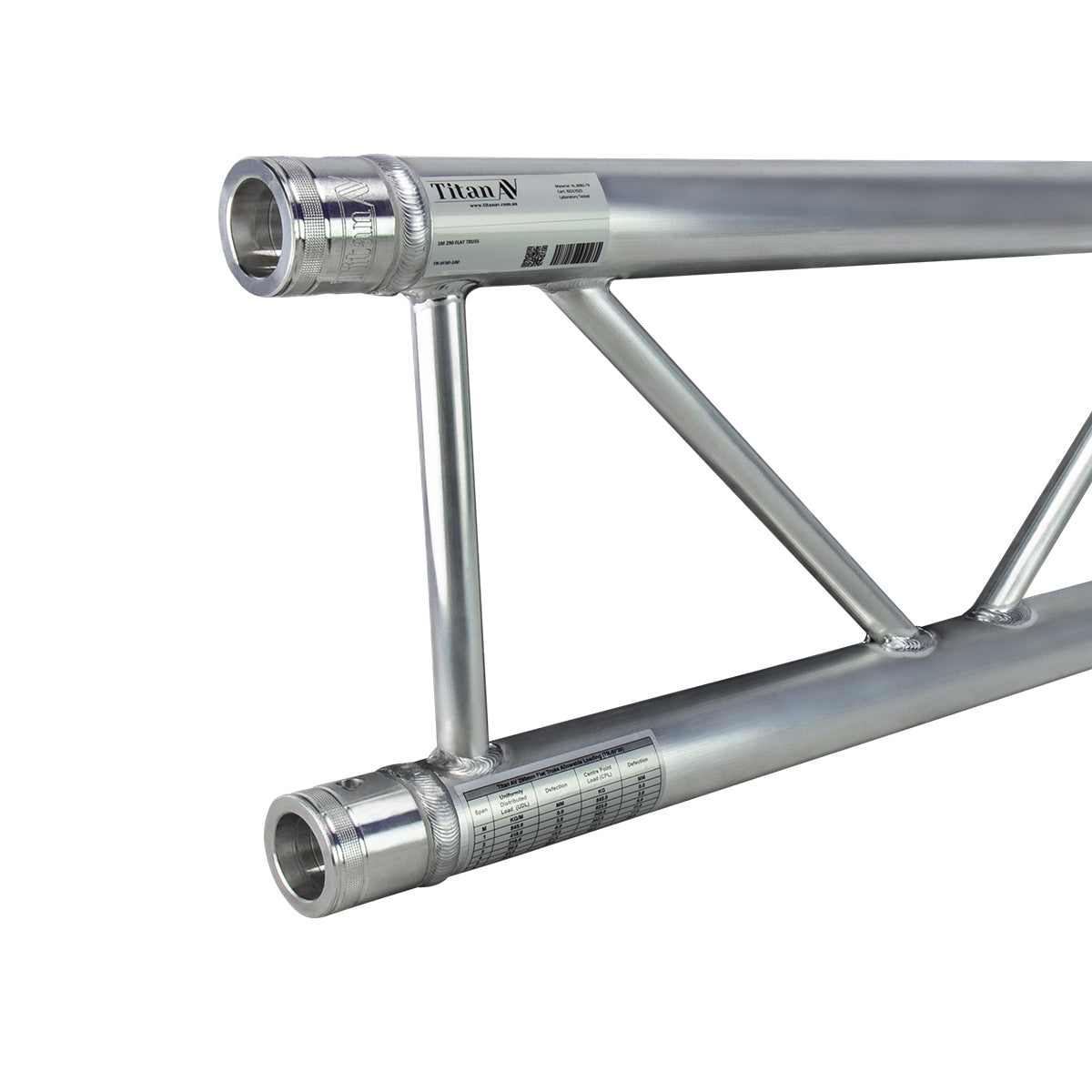

• 3m Flat Truss 290mm aluminium
• Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 20x2mm
• Length: 3m
• Supplied fitted with conical couplers
• Set of spigots and pins included in sale
• Perfect for stage, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
• Weight: 8.9kg
• Total load capacity 20kg per meter (As per truss KIT-0052)
Flat Truss Load Table
| Span |
Uniformly Distributed Load
(UDL) |
Deflection |
Centre Point Load
(CPL) |
Deflection |
| M |
KG/M |
MM |
KG |
MM |
| 1 |
845.0 |
0.0 |
845.0 |
0.0 |
| 2 |
418.0 |
3.0 |
623.0 |
2.0 |
| 3 |
218.0 |
6.0 |
345.0 |
5.0 |
| 4 |
95.0 |
13.0 |
202.0 |
11.0 |
| 5 |
43.0 |
21.0 |
114.0 |
17.0 |
| 6 |
20.0 |
30.0 |
53.0 |
24.0 |
