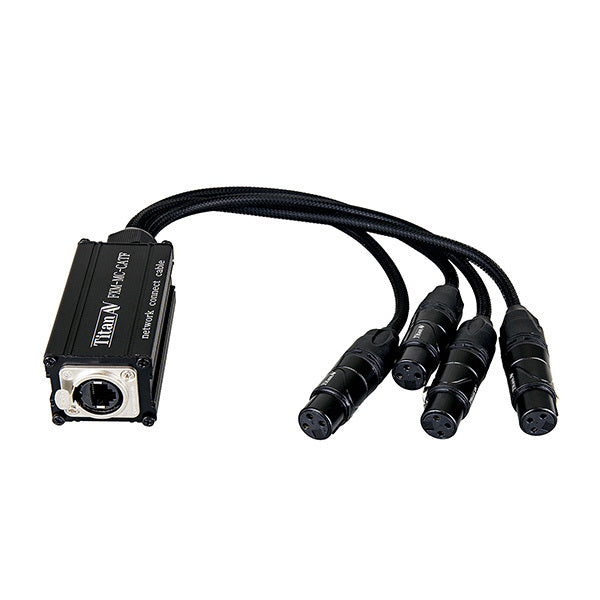

Titan AV CAT tails Cat5e/Cat6/etherCON to 4 x XLRF connectors, designed to link 4 channels of 3 pin XLR Audio, AES & DMX via Ethernet Cat5e or Cat6 cable. Common applications are for use in stage production, studio and live band, the loom/snake will help speed up setup and pull down as well eliminate cable mess and allow for easy cable identification thanks to the cable markers on each connector. Each channel consists of a pair of OFC conductors, encased in a helical/braided ground shield. Break outs are clearly labelled, each extension cord is wrapped in a protective braid and heavy-duty heat shrink. With quality shielded cables and quality connectors you can rest assured this multi network etherCON CAT tail will eliminate any interference whilst transferring high quality analogue or digital signals. TAV cables use high end custom connectors, helical shielded cable & a tough PVC outer jacket to insure superior performance and reliability.
Titan AV Audio connectors and adapters are ergonomic, high quality, reliable and backed up with a limited lifetime warranty.
*Please note this product does not work with 48v phantom power unless using true shielded cable
Features:
Four XLR analogue/digital signals down a single shielded CAT cable
Transmits four channels of balanced analogue signal
Transmits four channels of AES signal (eight audio channels)
Transmits four channels of DMX signal
EtherCON connection RJ45
RJ45 jack CAT6 or CAT5e shielded cable
DMX matching impedance: 110 Ohm
High quality custom connectors and cable
Gold plated connectors
Perfect for use with balanced Audio, DMX & AES/EBU signals
Multi-banded oxygen-free copper conductor
PE insulation which provides a low capacitance dielectric
Durable flexible matte black outer PVC jacket keeps the cable abrasion-resistant
100% Screening
Limited life time warranty
Specs:
30cm Fantail extension cord (each connector)
Length: 0.4m (Total length including jacks & etherCON hub)
Balanced analogue audio up to 50m
AES/EBU/DMX signal up to 100m
Colour: Black
1 x Titan AV etherCON to Quad 3-Pin XLR-F Multicore Loom Cable Network Stage Snake Cat Breakout
