Titan AV 2.5 Metre 400mm Box Truss is backordered and will ship as soon as it is back in stock.
Description
Description
Kindly be aware that this item is available for special order. Feel free to reach out to our sales team at sales@titanav.co for additional details.
This is one of the more popular trusses used in Australia, perfect for medium - heavy duty truss systems where general use and short - long lengths are needed. More common applications are stage production, outdoor venues, LED screens, outdoor structures, exhibitions and shop displays.

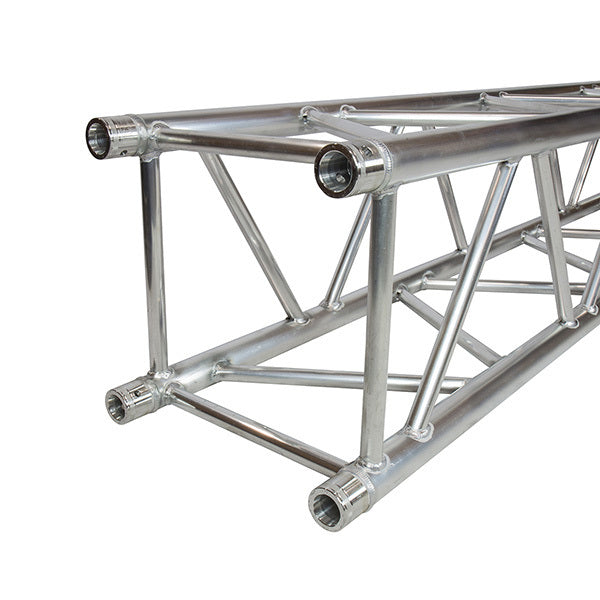

This box trussing is constructed from 6082-T6 aluminium 50x2mm main tube and 25x3mm braces. The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the public.
- Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)

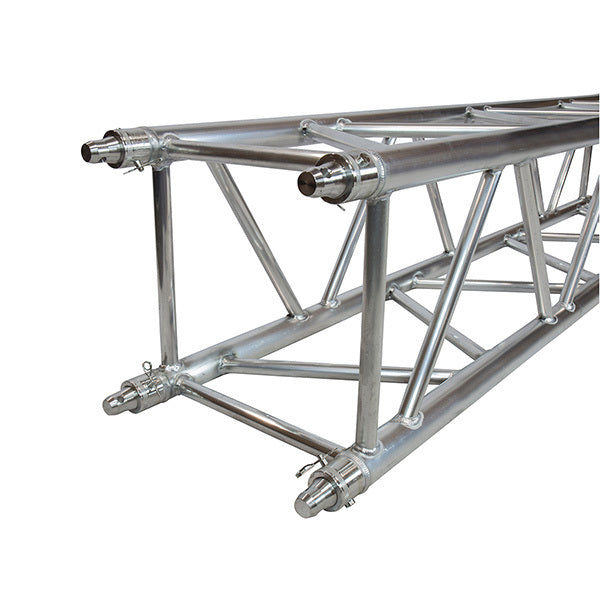

- Supplied fitted with conical couplers
- Set of spigots and pins included in sale
- Perfect for stage production, hanging LED walls, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
- Warranty: 2 years
- Length: 2.5m
- Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 25x3mm
- Weight: 18.2 kg
- 1 x 2.5m Box Truss 400mm
400mm Box Truss Load Table
Span | Uniformly Distributed Load (UDL) |
Deflection | Centre Point Load (CPL) |
Deflection |
M | KG/M | MM | KG | MM |
1 | 795 | 9.0 | 734.0 | 6.9 |
2 | 398 | 9.7 | 708.0 | 7.4 |
3 | 265 | 10.4 | 682.0 | 7.9 |
4 | 199 | 11.3 | 656.0 | 8.6 |
5 | 159 | 12.4 | 630.0 | 9.4 |
6 | 133 | 13.6 | 604.0 | 10.3 |
7 | 114 | 15.0 | 578.0 | 11.4 |
8 | 99 | 17.0 | 552.0 | 12.8 |
9 | 88 | 19.4 | 526.0 | 14.7 |
10 | 79 | 22.6 | 500.0 | 17.2 |
11 | 72 | 27.0 | 474.0 | 20.6 |
12 | 66 | 34.0 | 448.0 | 25.8 |
13 | 61 | 45.0 | 422.0 | 34.3 |
14 | 57 | 68.0 | 396.0 | 51.5 |
15 | 53 | 136 | 370.0 | 103 |
